Vscode for Unity Shader 用户代码片段(持续更新)_vscode写unity shader_TA_Soli的博客-程序员宅基地

技术标签: unity  shader  Shader

使用方法:打开vscode,文件→首选项→用户片段,输入shaderlab,复制粘贴即可

{

    // Place your snippets for shaderlab here. Each snippet is defined under a snippet name and has a prefix, body and
    // description. The prefix is what is used to trigger the snippet and the body will be expanded and inserted. Possible variables are:
    // $1, $2 for tab stops, $0 for the final cursor position, and ${1:label}, ${2:another} for placeholders. Placeholders with the
    // same ids are connected.
    // Example:
    // "Print to console": {

    //  "prefix": "log",
    //  "body": [
    //      "console.log('$1');",
    //      "$2"
    //  ],
    //  "description": "Log output to console"
    // }

    "Unity3D Shaderlab": {

        "prefix": "shaderlab",
        "body": [
            "Shader \"${1:New Shader}\"",
            "{",
                "\tProperties",
                "\t{",
                    "\t\t_MainTex (\"Texture\", 2D) = \"white\" {}",
                "\t}",
                "\tSubShader",
                "\t{",
                    "\t\tTags { \"RenderType\"=\"${2:Opaque}\" }\n",
                    "\t\tPass",
                    "\t\t{",
                    "\t\t\t$3",
                    "\t\t}",
                "\t}",
            "}"
        ],
        "description": "Unity3D Shaderlab"
    },
    "Unity3D SurfaceShader":{

        "prefix": "surfaceShader",
        "body": [
            "Shader \"${1:New Shader}\"",
                "{",
                    "\tProperties",
                    "\t{\n",

                    "\t}",
                    "\tSubShader",
                    "\t{",
                        "\t\tTags { \"RenderType\"=\"${2:Opaque}\" \"Queue\"=\"${3:Geometry}\" }\n",
                        "\t\tCGPROGRAM",
                        "\t\t#pragma surface surf Standard\n",
                        "\t\tstruct Input{\n",

                        "\t\t};\n\n",

                        "\t\tvoid surf(Input IN,inout SurfaceOutput o) {\n",

                        "\t\t}",
                        "\t\tENDCG",
                    "\t}",
                    "\tFallBack \"Diffuse\"",
                "}"

        ],
    },
    "CGPROGRAM": {

        "prefix": "cg",
        "body": [
            "CGPROGRAM",
            "#pragma vertex vert",
            "#pragma fragment frag\n",
            "#include \"UnityCG.cginc\"\n",
            "struct appdata",
            "{",
                "\tfloat4 vertex : POSITION;",
                "\tfloat2 uv : TEXCOORD0;",
            "};\n",
            "struct v2f",
            "{",
                "\tfloat2 uv : TEXCOORD0;",
                "\tfloat4 vertex : SV_POSITION;",
            "};\n",
            "sampler2D _MainTex;\n",
            "v2f vert(appdata v)",
            "{",
                "\tv2f o;",
                "\to.vertex = UnityObjectToClipPos(v.vertex);",
                "\to.uv = TRANSFORM_TEX(v.uv, _MainTex);\n",

                "\treturn o;",
            "}\n",

            "fixed4 frag(v2f i) : SV_Target",
            "{",
                "\t// sample the texture",
                "\tfixed4 col = tex2D(_MainTex, i.uv);",
                "\treturn col;",
            "}",
            "ENDCG"
        ],
        "description": "Unity3D Shaderlab CGPROGRAM"
    },

    "Multi Lighting Control":{

        "prefix": "multi_compile_fwdbase",
        "body": [
            "multi_compile_fwdbase",

        ],
        "description": "instructs Unity to compile all variants necessary for forward base rendering"
    },

    "Shadow Caster":{

        "prefix": "multi_compile_shadowcaster",
        "body": [
            "multi_compile_shadowcaster",

        ],
        "description": "ensures that the shader compiles all necessary variants required for shadow casting"
    },

    "SHADOW_ATTENUTATION":{

        "prefix": "SHADOW_ATTENUATION",
        "body": [
            "SHADOW_ATTENUATION($0)",
        ],
        "description": "a macro that returns a value between 0 and 1, where 0 indicates no shadow and 1 is fully shadowed"
    },

    "Camera Depth Texture":{

        "prefix": "_CameraDepthTexture",
        "body": "_CameraDepthTexture",
        "description": "the depth buffer globally available that Unity provides"
    },

    "Linear Eye Depth":{

        "prefix": "LinearEyeDepth",
        "body": "LinearEyeDepth($0)",
        "description": " convert the raw value to the linear depth"
    },

    "SAMPLE_DEPTH_TEXTURE":{

        "prefix": "SAMPLE_DEPTH_TEXTURE",
        "body": "SAMPLE_DEPTH_TEXTURE(_CamperaDepthTexture,${float2:uv})",
        "description": "a macro that for sampling the background depth"
    },

    "UNITY_Z_0_FAR_FROM_CLIPSPACE":{

        "prefix": "UNITY_Z_0_FAR_FROM_CLIPSPACE",
        "body": "UNITY_Z_0_FAR_FROM_CLIPSPACE($0)",
        "description": "a macro that takes the Z component of screenPos—which is the interpolated clip space depth—and converts it to linear depth"
    },

    "Check Top-To-Bottom":{

        "prefix": "CheckTopToBottom",
        "body": [
            "#if Unity_UV_STARTS_AT_TOP",
            "\tif(_CameraDepthTexture_TexelSize.y <0){",
            "\t\tuv.y = 1 - uv.y;",
            "\t}"   ,
            "#endif"
        ],
        "description": "check if our platforms work with top-to-bottom coordinates"
    },

    "SHADOW_CASTER_FRAGMENT":{

        "prefix": "SHADOW_CASTER_FRAGMENT",
        "body": "SHADOW_CASTER_FRAGMENT($0)",
        "description": "shadow caster"
    },

    "UnityApplyLinearShadowBias":{

        "prefix": "UnityApplyLinearShadowBias",
        "body": "UnityApplyLinearShadowBias($0);",
        "description": "Applying the bias prevents artifacts from appearing on the surface"

    },
    "Toggle":{

        "prefix": "Toggle",
        "body": "Toggle",
        "description": "Make a toggle visual on the panel"
    },

    "UNITY_PROJ_COORD":{

        "prefix":"UNITY_PROJ_COORD",
        "body": "UNITY_PROJ_COORD($0)",
        "description": "处理平台差异,一般直接返回输入的值"
    }
}

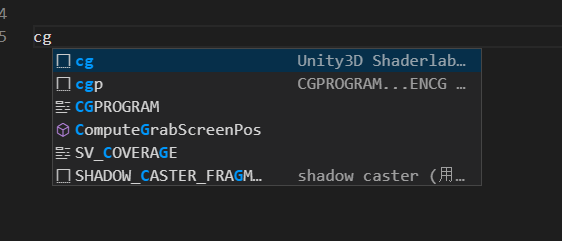

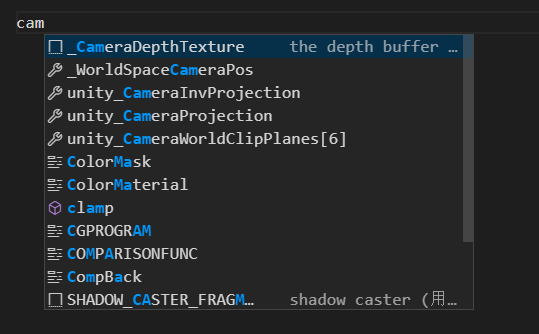

效果示例:
在这里插入图片描述
在这里插入图片描述

版权声明:本文为博主原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/weixin_42653501/article/details/106923277
