数据安全

数据的安全传输要从以下几方面入手

• 防窃听
• 防篡改
• 防伪造

现代计算机加密技术已经成为一门学科，基于数学理论，很难！这部分可以做了解

URL编码

• 类似于utf8等字符集编码规则

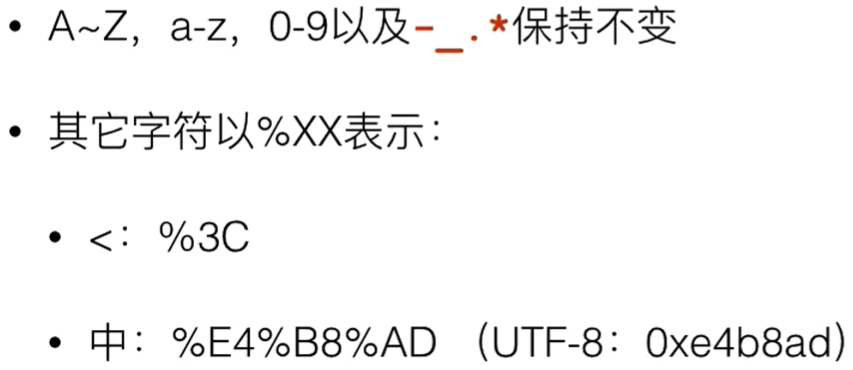

• URL编码规则：

• URL编码是编码算法，为了便于浏览器和服务器处理！不是加密算法

Base64编码

• 把二进制数据用文本表示的编码算法，适用于文本协议，例如电子邮件协议

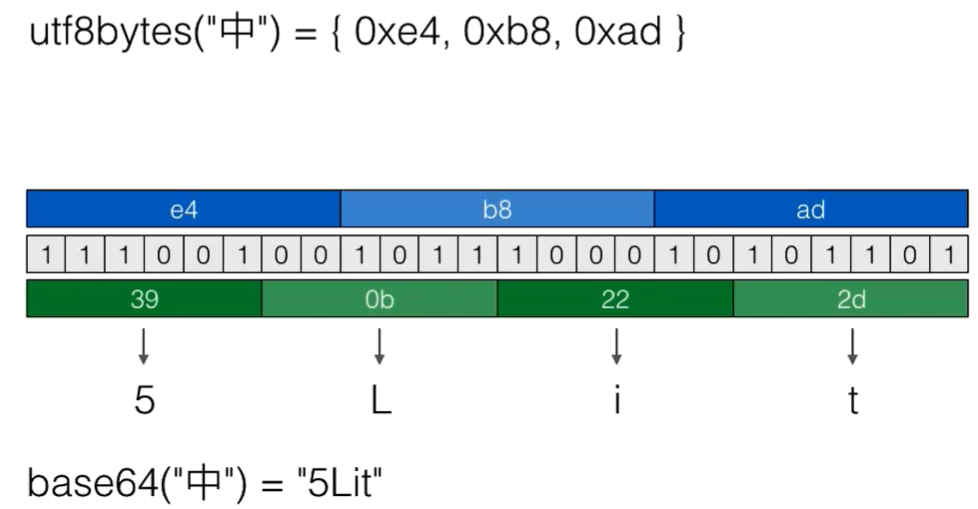

• 例如将“中”进行Base64编码：


import java.util.Base64;

public class SecBase64 {

	public static void main(String[] args) throws Exception {

		String original = "Hello\u00ff编码测试";
		String b64 = Base64.getEncoder().encodeToString(original.getBytes("UTF-8"));
		System.out.println(b64);// 如何要转成适合URL传输的文本，需要使用getUrlEncoder()
		String ori = new String(Base64.getDecoder().decode(b64), "UTF-8");
		System.out.println(ori);
	}
}

• Base64是编码算法，这种算法会降低效率；

MD5加密算法

• 是一种摘要算法，摘要算法也称为哈希算法/Hash/Digest/数字指纹
• 特点：任意长度的数据输入，固定长度的数据输出
• 目的：验证原始数据是否被篡改
• 碰撞：不同的输入得到相同的输出，因为将任意长度映射到固定长度，碰撞是不可避免的

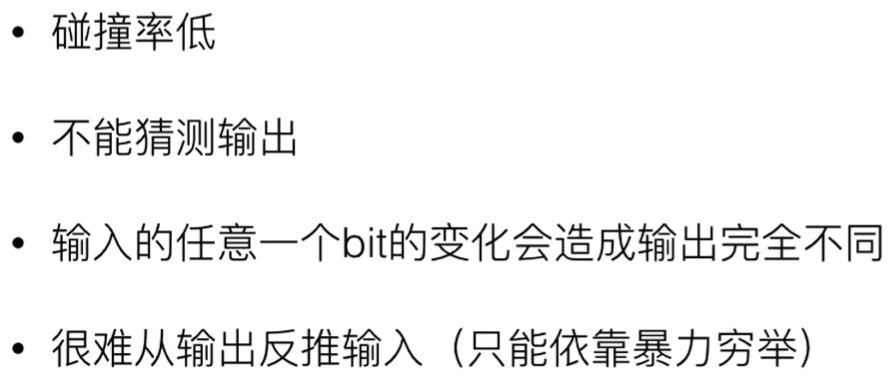

• 衡量Hash的安全性：

• 常见的Digest

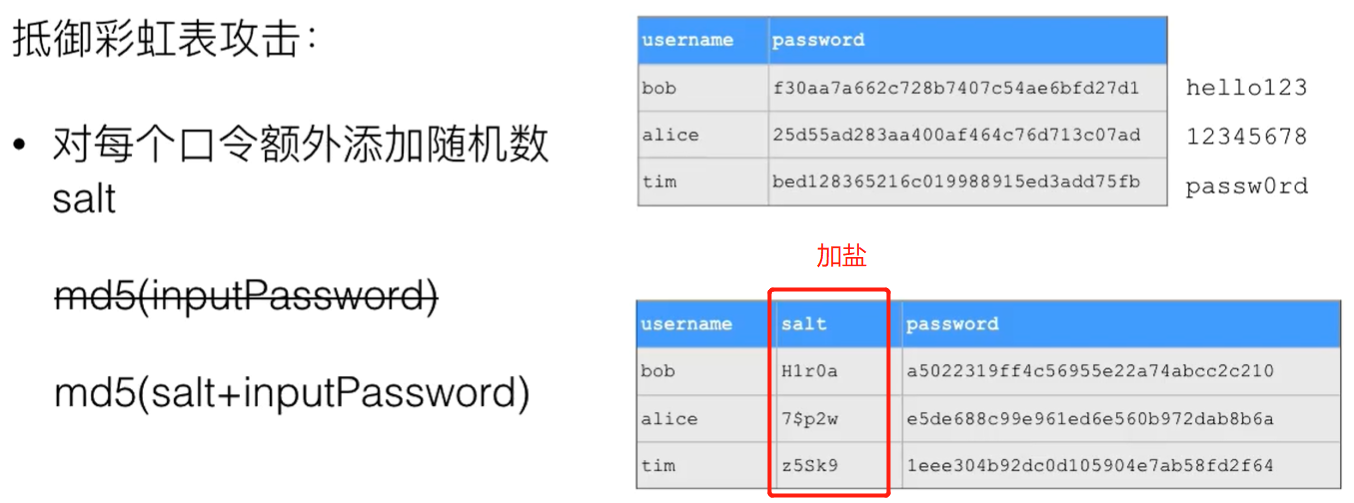

• 使用md5加密算法要注意彩虹表攻击


import java.math.BigInteger;
import java.security.MessageDigest;

public class MD5Salt {

	public static byte[] toMD5(byte[] input) {

		MessageDigest md;
		try {

			md = MessageDigest.getInstance("MD5");// SHA-1	SHA-256
		} catch (Exception e) {

			throw new RuntimeException(e);
		}
		md.update(input);
		return md.digest();
	}

	public static void main(String[] args) throws Exception {

		String passwd = "helloworld";
		String salt = "Random salt";
		byte[] r = MD5Salt.toMD5((salt + passwd).getBytes("UTF-8"));// 只接受字节类型，需要转化
		System.out.println(String.format("%032x", new BigInteger(1, r)));// 转成16进制显示
	}
}

Bouncy Castle

• 适用于Java的轻量级加密API
• Java加密扩展（JCE）和Java加密体系结构（JCA）的提供程序
• Java安全套接字扩展（JSSE）的提供程序等
• 可以进行动态和静态配置

import java.security.MessageDigest;
import java.security.Security;
import org.bouncycastle.jce.provider.BouncyCastleProvider;
import org.bouncycastle.pqc.math.linearalgebra.ByteUtils;

public class Digest {


	public static byte[] digest(String hashAlgorithm, byte[] input) {

		MessageDigest md;
		try {

			md = MessageDigest.getInstance(hashAlgorithm);
		} catch (Exception e) {

			throw new RuntimeException(e);
		}
		md.update(input);
		return md.digest();
	}
	public static void main(String[] args) throws Exception {

		// 把BouncyCastle作为Provider添加到java.security:
		Security.addProvider(new BouncyCastleProvider());// 动态导入jar包到工程，这里注册
		String s = "Java摘要算法测试";
		byte[] input = s.getBytes("UTF-8");
		byte[] r1 = digest("MD5", input);
		System.out.println(r1.length + ": " + ByteUtils.toHexString(r1));
		byte[] r2 = digest("SHA-1", input);
		System.out.println(r2.length + ": " + ByteUtils.toHexString(r2));
		byte[] r3 = digest("SHA-256", input);
		System.out.println(r3.length + ": " + ByteUtils.toHexString(r3));
		byte[] r4 = digest("RipeMD160", input);	// JDK没有的算法，有BouncyCastle提供
		System.out.println(r4.length + ": " + ByteUtils.toHexString(r4));
	}
}

Hmac

• 把key混入摘要的算法
• 可以配合MD5、SHA-1等摘要算法，长度和原摘要算法相同
• 可以理解为加入salt的MD5

import java.math.BigInteger;
import javax.crypto.KeyGenerator;
import javax.crypto.Mac;
import javax.crypto.SecretKey;

public class Hmac {


	public static byte[] hmac(String hmacAlgorithm, SecretKey skey, byte[] input) throws Exception {

		Mac mac = Mac.getInstance(hmacAlgorithm);
		mac.init(skey);
		mac.update(input);
		return mac.doFinal();
	}
	public static void main(String[] args) throws Exception {

		// http://docs.oracle.com/javase/6/docs/technotes/guides/security/StandardNames.html#Mac
		String algorithm = "HmacSHA1";
		// 原始数据:
		String data = "helloworld";
		// 随机生成一个Key:
		KeyGenerator keyGen = KeyGenerator.getInstance(algorithm);
		SecretKey skey = keyGen.generateKey();
		// 打印Key:
		byte[] key = skey.getEncoded();
		System.out.println(String.format("Key: %0" + (key.length * 2) + "x", new BigInteger(1, key)));
		// 用这个Key计算HmacSHA1:
		byte[] result = hmac(algorithm, skey, data.getBytes("UTF-8"));
		System.out.println(String.format("Hash: %0" + (result.length * 2) + "x", new BigInteger(1, result)));
	}
}

对称加密算法

• 加密密钥和解密密钥相同，大部分算法加密解密过程互逆
• AES_CBC算法：

import java.nio.charset.StandardCharsets;
import java.security.GeneralSecurityException;
import java.security.SecureRandom;
import java.util.Base64;

import javax.crypto.Cipher;
import javax.crypto.spec.IvParameterSpec;
import javax.crypto.spec.SecretKeySpec;

public class AES_CBC_Cipher {

	// 指明算法名称/工作模式/填充模式
	static final String CIPHER_NAME = "AES/CBC/PKCS5Padding";

	// 加密:
	public static byte[] encrypt(byte[] key, byte[] input) throws GeneralSecurityException {

		Cipher cipher = Cipher.getInstance(CIPHER_NAME);
		SecretKeySpec keySpec = new SecretKeySpec(key, "AES");
		// CBC模式需要生成一个16 bytes的initialization vector:
		SecureRandom sr = SecureRandom.getInstanceStrong();
		byte[] iv = sr.generateSeed(16);
		IvParameterSpec ivps = new IvParameterSpec(iv);
		cipher.init(Cipher.ENCRYPT_MODE, keySpec, ivps);
		byte[] data = cipher.doFinal(input);
		// IV不需要保密，把IV和密文一起返回:
		return join(iv, data);
	}

	// 解密:
	public static byte[] decrypt(byte[] key, byte[] input) throws GeneralSecurityException {

		// 把input分割成IV和密文:
		byte[] iv = new byte[16];
		byte[] data = new byte[input.length - 16];
		System.arraycopy(input, 0, iv, 0, 16);
		System.arraycopy(input, 16, data, 0, data.length);
		// 解密:
		Cipher cipher = Cipher.getInstance(CIPHER_NAME);
		SecretKeySpec keySpec = new SecretKeySpec(key, "AES");
		IvParameterSpec ivps = new IvParameterSpec(iv);
		cipher.init(Cipher.DECRYPT_MODE, keySpec, ivps);
		return cipher.doFinal(data);
	}

	public static byte[] join(byte[] bs1, byte[] bs2) {

		byte[] r = new byte[bs1.length + bs2.length];
		System.arraycopy(bs1, 0, r, 0, bs1.length);
		System.arraycopy(bs2, 0, r, bs1.length, bs2.length);
		return r;
	}

	public static void main(String[] args) throws Exception {

		// 原文:
		String message = "Hello, world! encrypted using AES!";
		System.out.println("Message: " + message);
		// 128位密钥 = 16 bytes Key:
		byte[] key = "1234567890abcdef".getBytes("UTF-8");
		// 加密:
		byte[] data = message.getBytes(StandardCharsets.UTF_8);
		byte[] encrypted = encrypt(key, data);
		System.out.println("Encrypted data: " + Base64.getEncoder().encodeToString(encrypted));
		// 解密:
		byte[] decrypted = decrypt(key, encrypted);
		System.out.println("Decrypted data: " + new String(decrypted, "UTF-8"));
	}
}

• 使用AES256_ECB算法，由于Oracle收到相关法律限制，需要从官网下载jar包替换JDK的policy文件，否则不能进行256及以上长度密钥的加密！

密钥交换算法

• 如何在不安全的信道上安全传送密钥？

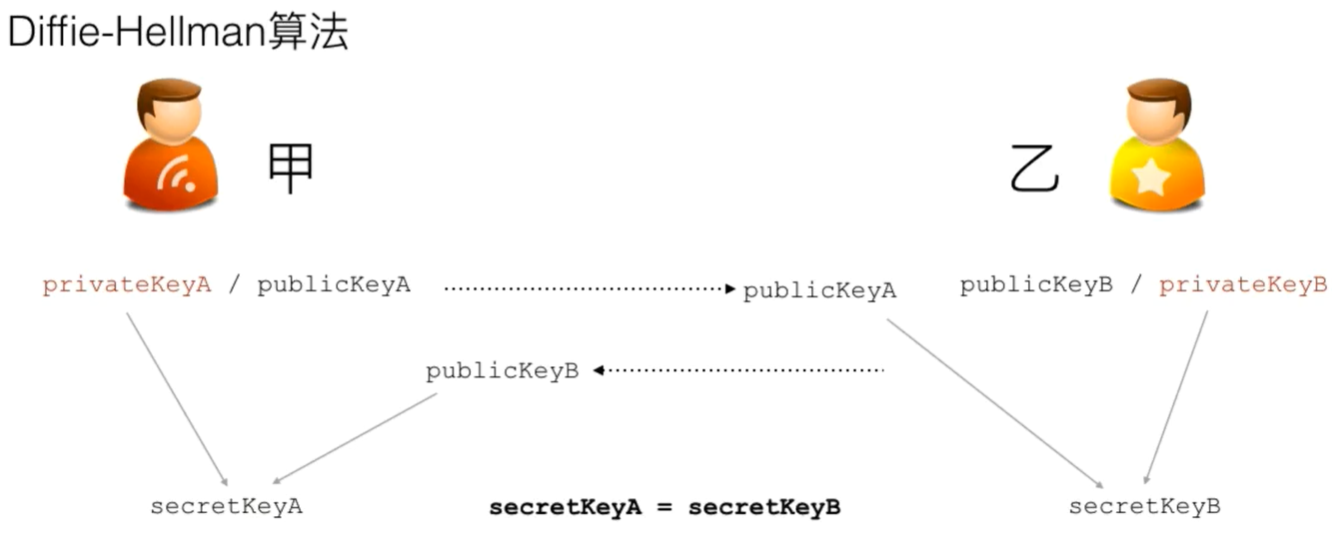

• 原理是各自生成公钥私钥，只传递公钥，互相组合得到相同的密钥！


import java.io.IOException;
import java.math.BigInteger;
import java.security.GeneralSecurityException;
import java.security.KeyFactory;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.PrivateKey;
import java.security.PublicKey;
import java.security.spec.X509EncodedKeySpec;
import java.util.Base64;

import javax.crypto.Cipher;
import javax.crypto.KeyAgreement;
import javax.crypto.SecretKey;

class Person {


	public final String name;

	public PublicKey publicKey;
	private PrivateKey privateKey;
	private SecretKey secretKey;

	public Person(String name) {

		this.name = name;
	}

	// 生成本地KeyPair:
	public void generateKeyPair() {

		try {

			KeyPairGenerator kpGen = KeyPairGenerator.getInstance("DH");// DH算法的KeyPair
			kpGen.initialize(512);
			KeyPair kp = kpGen.generateKeyPair();
			this.privateKey = kp.getPrivate();
			this.publicKey = kp.getPublic();
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}

	public void generateSecretKey(byte[] receivedPubKeyBytes) {

		try {

			// 从byte[]恢复PublicKey:
			X509EncodedKeySpec keySpec = new X509EncodedKeySpec(receivedPubKeyBytes);
			KeyFactory kf = KeyFactory.getInstance("DH");
			PublicKey receivedPublicKey = kf.generatePublic(keySpec);
			// 生成本地密钥:
			KeyAgreement keyAgreement = KeyAgreement.getInstance("DH");
			keyAgreement.init(this.privateKey); // 自己的PrivateKey
			keyAgreement.doPhase(receivedPublicKey, true); // 对方的PublicKey
			// 生成AES密钥:
			this.secretKey = keyAgreement.generateSecret("AES");
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}

	public void printKeys() {

		System.out.printf("Name: %s\n", this.name);
		System.out.printf("Private key: %x\n", new BigInteger(1, this.privateKey.getEncoded()));
		System.out.printf("Public key: %x\n", new BigInteger(1, this.publicKey.getEncoded()));
		System.out.printf("Secret key: %x\n", new BigInteger(1, this.secretKey.getEncoded()));
	}

	// 发送加密消息:
	public String sendMessage(String message) {

		try {

			Cipher cipher = Cipher.getInstance("AES/ECB/PKCS5Padding");
			cipher.init(Cipher.ENCRYPT_MODE, this.secretKey);
			byte[] data = cipher.doFinal(message.getBytes("UTF-8"));
			return Base64.getEncoder().encodeToString(data);
		} catch (GeneralSecurityException | IOException e) {

			throw new RuntimeException(e);
		}
	}

	// 接收加密消息并解密:
	public String receiveMessage(String message) {

		try {

			Cipher cipher = Cipher.getInstance("AES/ECB/PKCS5Padding");
			cipher.init(Cipher.DECRYPT_MODE, this.secretKey);
			byte[] data = cipher.doFinal(Base64.getDecoder().decode(message));
			return new String(data, "UTF-8");
		} catch (GeneralSecurityException | IOException e) {

			throw new RuntimeException(e);
		}
	}

}

public class DH {


	public static void main(String[] args) {

		// Bob和Alice:
		Person bob = new Person("Bob");
		Person alice = new Person("Alice");

		// 各自生成KeyPair:
		bob.generateKeyPair();
		alice.generateKeyPair();

		// 双方交换各自的PublicKey:
		// Bob根据Alice的PublicKey生成自己的本地密钥:
		bob.generateSecretKey(alice.publicKey.getEncoded());
		// Alice根据Bob的PublicKey生成自己的本地密钥:
		alice.generateSecretKey(bob.publicKey.getEncoded());

		// 检查双方的本地密钥是否相同:
		bob.printKeys();
		alice.printKeys();

		// 双方的SecretKey相同，后续通信将使用SecretKey作为密钥进行AES加解密:
		String msgBobToAlice = bob.sendMessage("Hello, Alice!");
		System.out.println("Bob -> Alice: " + msgBobToAlice);
		String aliceDecrypted = alice.receiveMessage(msgBobToAlice);
		System.out.println("Alice decrypted: " + aliceDecrypted);
	}
}

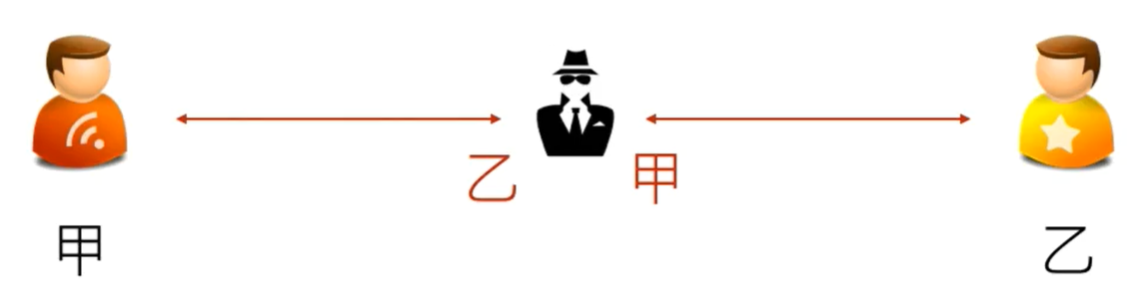

• 当然，有加密就有破解，如上图所示，如果有中间人假冒，还是会被窃取；

非对称加密算法

• 加密和解密使用不同的密钥
• 只有同一个公钥私钥对才能正常加密/解密

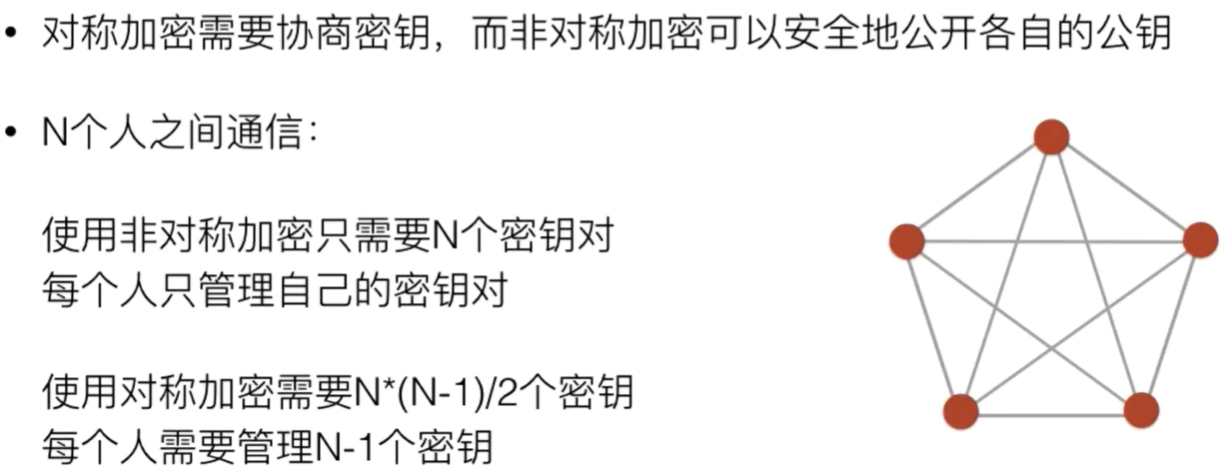

• 优点：


RSA签名算法

• 发送方用自己的私钥对消息进行签名
• 接收方用发送方的公钥检验签名是否有效（只有用私钥的签名才能有效）
• 保证了数据在传输过程中没有被修改，防止伪造的发送方


import java.security.GeneralSecurityException;
import java.security.KeyFactory;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.PrivateKey;
import java.security.PublicKey;
import java.security.Signature;
import java.security.spec.PKCS8EncodedKeySpec;
import java.security.spec.X509EncodedKeySpec;
import java.util.Base64;

public class SecRSASignature {


	PrivateKey sk;
	PublicKey pk;

	public SecRSASignature() throws GeneralSecurityException {
    // 还是要获得密钥对
		// generate key pair:
		KeyPairGenerator kpGen = KeyPairGenerator.getInstance("RSA");
		kpGen.initialize(1024);
		KeyPair kp = kpGen.generateKeyPair();
		this.sk = kp.getPrivate();
		this.pk = kp.getPublic();
	}

	public SecRSASignature(byte[] pk, byte[] sk) throws GeneralSecurityException {

		// create from bytes:
		KeyFactory kf = KeyFactory.getInstance("RSA");
		X509EncodedKeySpec pkSpec = new X509EncodedKeySpec(pk);
		this.pk = kf.generatePublic(pkSpec);
		PKCS8EncodedKeySpec skSpec = new PKCS8EncodedKeySpec(sk);
		this.sk = kf.generatePrivate(skSpec);
	}

	public byte[] getPrivateKey() {

		return this.sk.getEncoded();
	}

	public byte[] getPublicKey() {

		return this.pk.getEncoded();
	}

	public byte[] sign(byte[] message) throws GeneralSecurityException {

		// sign by sk:
		Signature signature = Signature.getInstance("SHA1withRSA");// MD5withRSA SHA256withRSA
		signature.initSign(this.sk);
		signature.update(message);
		return signature.sign();
	}

	public boolean verify(byte[] message, byte[] sign) throws GeneralSecurityException {

		// verify by pk:
		Signature signature = Signature.getInstance("SHA1withRSA");
		signature.initVerify(this.pk);
		signature.update(message);
		return signature.verify(sign);
	}

	public static void main(String[] args) throws Exception {

		byte[] message = "Hello，使用SHA1withRSA算法进行数字签名！".getBytes("UTF-8");
		SecRSASignature rsas = new SecRSASignature();
		byte[] sign = rsas.sign(message);
		System.out.println("sign: " + Base64.getEncoder().encodeToString(sign));
		boolean verified = rsas.verify(message, sign);
		System.out.println("verify: " + verified);
		// 用另一个公钥验证:
		boolean verified2 = new SecRSASignature().verify(message, sign);
		System.out.println("verify with another public key: " + verified2);
		// 修改原始信息:
		message[0] = 100;
		boolean verified3 = rsas.verify(message, sign);
		System.out.println("verify changed message: " + verified3);
	}
}

• 类似的，还有DSA签名算法

数字证书

• 摘要算法保证了数据没被篡改（平时也可加盐作为数据加密）
• 非对称加密算法实现了对数据的加密解密
• 签名算法确保了数据安全传输（完整性、抗否认性）
• 数字证书就是集合了多种密码学算法，用于实现数据加解密、身份认证、签名等多种功能的网络安全标准

import java.io.BufferedInputStream;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.security.GeneralSecurityException;
import java.security.KeyStore;
import java.security.PrivateKey;
import java.security.PublicKey;
import java.security.Signature;
import java.security.cert.X509Certificate;
import java.util.Base64;

import javax.crypto.Cipher;

public class X509 {

	private final PrivateKey privateKey;
	public final X509Certificate certificate;

	public X509(KeyStore ks, String certName, String password) {

		try {

			this.privateKey = (PrivateKey) ks.getKey(certName, password.toCharArray());
			this.certificate = (X509Certificate) ks.getCertificate(certName);
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}
	public byte[] encrypt(byte[] message) {

		try {

			Cipher cipher = Cipher.getInstance(this.privateKey.getAlgorithm());
			cipher.init(Cipher.ENCRYPT_MODE, this.privateKey);
			return cipher.doFinal(message);
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}
	public byte[] decrypt(byte[] data) {

		try {

			PublicKey publicKey = this.certificate.getPublicKey();
			Cipher cipher = Cipher.getInstance(publicKey.getAlgorithm());
			cipher.init(Cipher.DECRYPT_MODE, publicKey);
			return cipher.doFinal(data);
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}
	public byte[] sign(byte[] message) {

		try {

			Signature signature = Signature.getInstance(this.certificate.getSigAlgName());
			signature.initSign(this.privateKey);
			signature.update(message);
			return signature.sign();
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}
	public boolean verify(byte[] message, byte[] sig) {

		try {

			Signature signature = Signature.getInstance(this.certificate.getSigAlgName());
			signature.initVerify(this.certificate);
			signature.update(message);
			return signature.verify(sig);
		} catch (GeneralSecurityException e) {

			throw new RuntimeException(e);
		}
	}
	static KeyStore loadKeyStore(String keyStoreFile, String password) {

		try (InputStream input = new BufferedInputStream(new FileInputStream(keyStoreFile))) {

			KeyStore ks = KeyStore.getInstance(KeyStore.getDefaultType());
			ks.load(input, password.toCharArray());
			return ks;
		} catch (GeneralSecurityException | IOException e) {

			throw new RuntimeException(e);
		}
	}
	public static void main(String[] args) throws Exception {

		byte[] message = "Hello，使用X.509证书进行加密和签名！".getBytes("UTF-8");
		// 读取KeyStore:
		KeyStore ks = loadKeyStore("my.keystore", "456789");// 根据命令行命令生成证书，证书密码
		// 读取证书:
		X509 x509 = new X509(ks, "mycert", "123456");
		// 加密:
		byte[] encrypted = x509.encrypt(message);
		System.out.println("encrypted: " + Base64.getEncoder().encodeToString(encrypted));
		// 解密:
		byte[] decrypted = x509.decrypt(encrypted);
		System.out.println("decrypted: " + new String(decrypted, "UTF-8"));
		// 签名:
		byte[] sign = x509.sign(message);
		System.out.println("sign: " + Base64.getEncoder().encodeToString(sign));
		// 验证签名:
		boolean verified = x509.verify(message, sign);
		System.out.println("verify: " + verified);
	}
}

• 生成证书命令：（命令行下项目目录执行）

// 如果要应用于网站，域名需保证一致
keytool -genkeypair -keyalg RSA -keysize 1024 -sigalg SHA1withRSA -validity 36500 -alias mycert -keystore my.keystore -dname "CN=www.sample.com, OU=sample, O=sample, L=BJ, ST=BJ, C=CN" -keypass 123456 -storepass 456789
// 查看证书命令
keytool -list -keystore my.keystore -storepass 456789

小结

安全问题是网络通信的重难点，如果能到研究这一步，算是学有所成了吧！
