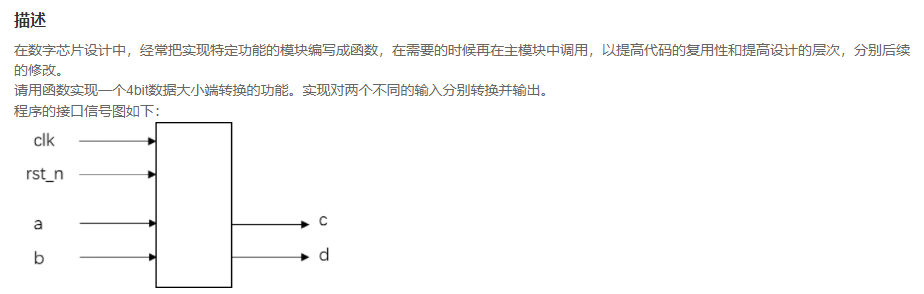

大小端转换：

`timescale 1ns/1ns
module function_mod(
	input clk,
	input rst_n,
	input [3:0]a,
	input [3:0]b,

	output [3:0]c,
	output [3:0]d
);

    function [3:0]  data_rev;  // 函数名和返回变量名相同  data_rev
        input [3:0] din;  // 声明输入端口
        begin
            data_rev[0] = din[3];
            data_rev[1] = din[2];
            data_rev[2] = din[1];
            data_rev[3] = din[0];
        end
    endfunction

    assign c = data_rev(a);  // 调用函数
    assign d = data_rev(b);

endmodule

---

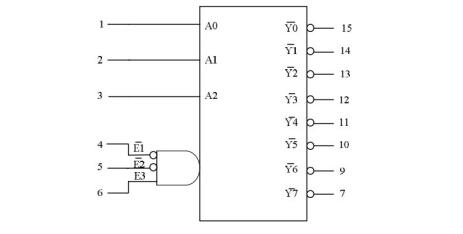

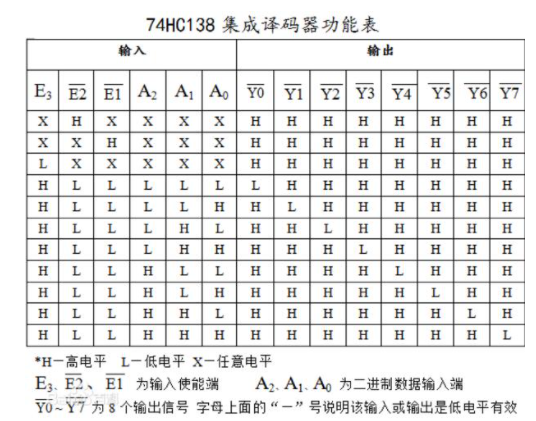

38译码器

`timescale 1ns/1ns
module decoder_38(
   input             E1_n   ,
   input             E2_n   ,
   input             E3     ,
   input             A0     ,
   input             A1     ,
   input             A2     ,

   output wire       Y0_n   ,
   output wire       Y1_n   ,
   output wire       Y2_n   ,
   output wire       Y3_n   ,
   output wire       Y4_n   ,
   output wire       Y5_n   ,
   output wire       Y6_n   ,
   output wire       Y7_n
);
    wire E;
    assign E = E3 & ~E1_n & ~E2_n;   // 1&0&0 = 0
    assign  Y0_n = ~(E & ~A2 & ~A1 & ~A0);  //000
    assign  Y1_n = ~(E & ~A2 & ~A1 &  A0);  //001
    assign  Y2_n = ~(E & ~A2 &  A1 & ~A0);
    assign  Y3_n = ~(E & ~A2 &  A1 &  A0);
    assign  Y4_n = ~(E &  A2 & ~A1 & ~A0);
    assign  Y5_n = ~(E &  A2 & ~A1 &  A0);
    assign  Y6_n = ~(E &  A2 &  A1 & ~A0);
    assign  Y7_n = ~(E &  A2 &  A1 &  A0);

endmodule

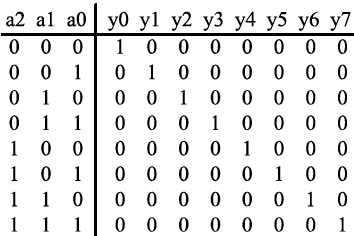

module Decoder38(data_in,data_out,enable);
    input [2:0] data_in;
     input enable;
     output [7:0] data_out;
     reg [7:0] data_out;

always @(data_in)
    begin
		if (enable == 1)
			case(data_in)
				3'b000: data_out = 8'b00000001;
				3'b001: data_out = 8'b00000010;
				3'b010: data_out = 8'b00000100;
				3'b011: data_out = 8'b00001000;
				3'b100: data_out = 8'b00010000;
				3'b101: data_out = 8'b00100000;
				3'b110: data_out = 8'b01000000;
				3'b111: data_out = 8'b10000000;
				default: data_out = 8'bxxxxxxxx;
			endcase
		else
            data_out = 8'b11111111;
     end

endmodule

---

边沿检测：

`timescale 1ns/1ns
module edge_detect(
	input clk,
	input rst_n,
	input a,

	output reg rise,
	output reg down
);
    reg d;
    always @(posedge clk or negedge rst_n)
        if (!rst_n)
            d <= 1'b0;
        else
            d <= a;

    [email protected](posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            rise<=1'b0; down<=1'b0;
        end
        else if(a==1 && d==0) begin
            rise <=1'b1;
            down <=1'b0;
        end
        else if(a==0 && d==1) begin
            rise <=1'b0;
            down <=1'b1;
        end
        else begin
            rise<=1'b0;
            down<=1'b0;
        end
    end

endmodule

---

ROM：

`timescale 1ns/1ns
module rom(
	input clk,
	input rst_n,
	input [7:0]addr,

	output [3:0]data
);
    reg[3:0] rom_data[7:0];  // 8个rom_data寄存器，每个4bit
    always @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin  //  初始化
            rom_data[0] <= 4'd0;
            rom_data[1] <= 4'd2;
            rom_data[2] <= 4'd4;
            rom_data[3] <= 4'd6;
            rom_data[4] <= 4'd8;
            rom_data[5] <= 4'd10;
            rom_data[6] <= 4'd12;
            rom_data[7] <= 4'd14;
        end
        else begin   // 每个时钟周期维持数据
            rom_data[0] <= rom_data[0];
            rom_data[1] <= rom_data[1];
            rom_data[2] <= rom_data[2];
            rom_data[3] <= rom_data[3];
            rom_data[4] <= rom_data[4];
            rom_data[5] <= rom_data[5];
            rom_data[6] <= rom_data[6];
            rom_data[7] <= rom_data[7];
        end
    end

    assign data =  rom_data[addr];  // 按地址输出

endmodule

---

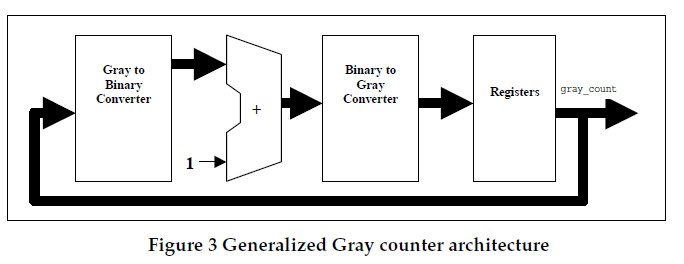

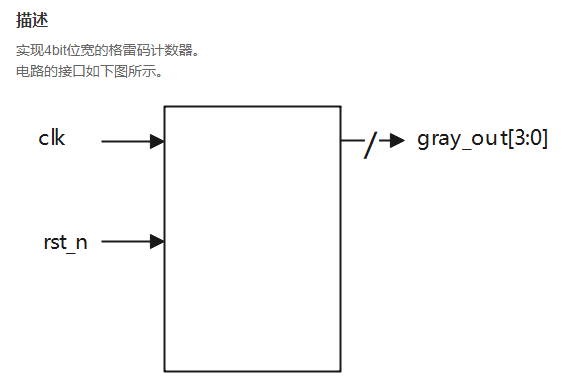

格雷码计数器

module gray_counter(
   input   clk,
   input   rst_n,
   output  reg [3:0] gray_out
);

	//格雷码转二进制
	wire [3:0] gray_wire;  // 格雷码 wire进  一根线送进
	reg  [3:0] bin_out;    // 二进制 reg出
	always @(posedge clk or negedge rst_n)begin
	   if(~rst_n) begin
	      bin_out <= 4'b0;
	   end
	   else begin
	      bin_out[3] = gray_wire[3];
	      bin_out[2] = gray_wire[2]^bin_out[3];
	      bin_out[1] = gray_wire[1]^bin_out[2];
	      bin_out[0] = gray_wire[0]^bin_out[1];
	   end
	end

	//二进制加一
	reg [3:0] bin_add_wire;   // 二进制+1结果 reg出
	always @(posedge clk or negedge rst_n)begin
	   if(~rst_n) begin
	      bin_add_wire <= 4'b0;
	   end
	   else begin
	      bin_add_wire <= bin_out + 1'b1;  //  bin_out：格雷码转二进制结果
	   end
	end

	//二进制转格雷码
	assign gray_wire = (bin_add_wire >> 1) ^ bin_add_wire;  // 同一根线送出

	// 时钟上升沿到来,送进输出
	always @(posedge clk or negedge rst_n)begin
	   if(~rst_n) begin
	      gray_out <= 4'b0;
	   end
	   else begin
	      gray_out <= gray_wire;
	   end
	end

endmodule

---
