阿里云大学JavaWeb开发系列课程Spring框架入门第二十三讲Struts2整合mybatis_哒哒哒菓子的博客-程序员秘密

1、jar包

jstl.jar
standard.jar

aopalliance.jar
asm-3.3.1.jar
asm-commons-3.3.jar
asm-tree-3.3.jar
aspectjweaver.jar
cglib-2.2.2.jar
commons-fileupload-1.2.2.jar
commons-io-2.0.1.jar
commons-lang3-3.1.jar
commons-logging-1.1.1.jar
freemarker-2.3.19.jar
javassist-3.17.1-GA.jar
log4j-1.2.17.jar
log4j-api-2.0-rc1.jar
log4j-core-2.0-rc1.jar
mybatis-3.2.7.jar
mybatis-spring-1.2.3.jar
mysql-connector-java-5.1.20.jar
ognl-3.0.5.jar
slf4j-api-1.7.5.jar
slf4j-log4j12-1.7.5.jar
spring-aop-4.1.6.RELEASE.jar
spring-aspects-4.1.6.RELEASE.jar
spring-beans-4.1.6.RELEASE.jar
spring-context-4.1.6.RELEASE.jar
spring-context-support-4.1.6.RELEASE.jar
spring-core-4.1.6.RELEASE.jar
spring-expression-4.1.6.RELEASE.jar
spring-jdbc-4.1.6.RELEASE.jar
spring-orm-4.1.6.RELEASE.jar
spring-tx-4.1.6.RELEASE.jar
spring-web-4.1.6.RELEASE.jar
spring-webmvc-4.1.6.RELEASE.jar
struts2-core-2.3.4.jar
struts2-spring-plugin-2.3.4.jar
xwork-core-2.3.4.jar

2、web.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" id="WebApp_ID" version="4.0">
  <!-- 配置spring -->
  <context-param>
  	<param-name>contextConfigLocation</param-name>
  	<param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <listener>
  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- struts2配置 -->
  <filter>
  	<filter-name>struts2</filter-name>
  	<filter-class>org.apache.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
  </filter>
  <filter-mapping>
  	<filter-name>struts2</filter-name>
  	<url-pattern>*.action</url-pattern>
  </filter-mapping>
  <display-name>16spring4_stucts2_mybatis</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
</web-app>

3、mybatis配置文件 mybatis.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<typeAliases>
		<package name="cn.sxt.vo"/>
	</typeAliases>

	<mappers>
		<package name="cn.sxt.dao.UserMapper"/>
	</mappers>
</configuration>

4、编码

UserAction.java

package cn.sxt.action;

import java.util.List;

import cn.sxt.service.UserService;
import cn.sxt.vo.User;

public class UserAction {
	private List<User> list;
	private UserService userService;

	public String list() {
		list = userService.getAll();
		return "success";
	}
	public List<User> getList(){
		return list;
	}
	public void setList(List<User> list) {
		this.list = list;
	}
	public UserService getUserService() {
		return userService;
	}
	public void setUserService(UserService userService) {
		this.userService = userService;
	}

}

UserDao接口

package cn.sxt.dao;

import java.util.List;

import cn.sxt.vo.User;

public interface UserDao {
	public List<User> getAll();
	}

UserDaoImpl.java

package cn.sxt.dao.impl;

import java.util.List;

import org.mybatis.spring.support.SqlSessionDaoSupport;

import cn.sxt.dao.UserDao;
import cn.sxt.vo.User;

public class UserDaoImpl extends SqlSessionDaoSupport implements UserDao{

	public List<User> getAll() {
		// TODO 自动生成的方法存根
		return this.getSqlSession().selectList("cn.sxt.vo.user.mapper.getAll");
	}

}

UserService接口

package cn.sxt.service;

import java.util.List;

import cn.sxt.vo.User;

public interface UserService {
	public List<User> getAll();
}

UserServiceImpl.java

package cn.sxt.service.impl;

import java.util.List;

import cn.sxt.dao.UserDao;
import cn.sxt.service.UserService;
import cn.sxt.vo.User;

public class UserServiceImpl implements UserService{
	private UserDao userDao;
	public void setUserDao(UserDao userDao) {
		this.userDao = userDao;
	}
	@Override
	public List<User> getAll() {
		// TODO 自动生成的方法存根
		return userDao.getAll();
	}
}

User.java

package cn.sxt.vo;

public class User {
	private int id;
	private String name;
	private	String pwd;
	public int getId() {
		return id;
	}
	public void setId(int id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getPwd() {
		return pwd;
	}
	public void setPwd(String pwd) {
		this.pwd = pwd;
	}

}

user.mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.sxt.vo.user.mapper">
	<select id="getAll" resultType="cn.sxt.vo.User">
		select * from user
	</select>
</mapper>

user.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd">
	<bean id="userDao" class="cn.sxt.dao.impl.UserDaoImpl">
		<property name="sqlSessionFactory" ref="sqlSessionFactory"/>
	</bean>
	<bean id="userService" class="cn.sxt.service.impl.UserServiceImpl">
		<property name="userDao" ref="userDao"/>
	</bean>
	<bean id="userAction" class="cn.sxt.action.UserAction">
		<property name="userService" ref="userService"/>
	</bean>

	</beans>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd">
	<!-- 配置数据源 -->
	<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
		<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
		<property name="url" value="jdbc:mysql://localhost:3306/test"/>
		<property name="username" value="root"/>
		<property name="password" value="1012"/>
	</bean>
	<!-- 声明式事务配置开始 -->
	<!-- 配置事务管理器 -->
	<bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"/>
	</bean>
	<!-- 配置事务通知 -->
	<tx:advice id="txAdvice" transaction-manager="txManager">
		<tx:attributes>
			<!-- 配置哪些方法使用声明样的事务，配置事务的传播特性 -->
			<tx:method name="add" propagation="REQUIRED"/>
			<tx:method name="insert" propagation="REQUIRED"/>
			<tx:method name="update" propagation="REQUIRED"/>
			<tx:method name="remove*" propagation="REQUIRED"/>
			<tx:method name="add" propagation="REQUIRED"/>
			<tx:method name="get" read-only="true"/>
			<tx:method name="*" propagation="REQUIRED"/>
		</tx:attributes>
	</tx:advice>
	<aop:config>
		<aop:pointcut expression="execution(* cn.sxt.dao.impl.*.*(..))" id="pointcut"/>
		<aop:advisor advice-ref="txAdvice" pointcut-ref="pointcut"/>
	</aop:config>
	<!-- 声明式事务配置结束 -->
	<!-- 配置sqlSessionFactory -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource"/>
		<property name="mapperLocations" value="classpath:cn/sxt/vo/*.mapper.xml"></property>
	</bean>

	<import resource="config/spring/user.xml"/>
</beans>

mybatis.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!-- 	<typeAliases>
		<package name="cn.sxt.vo"/>
	</typeAliases> -->

	<mappers>
		<mapper resource="cn/sxt/vo/user.mapper.xml"/>
	</mappers>
</configuration>

struts.java

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
	"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
	"http://struts.apache.org/dtds/struts-2.3.dtd">

<struts>

    <package name="default" namespace="/" extends="struts-default">
		<action name="list" class="userAction" method="list">
			<result>list.jsp</result>
		</action>
    </package>

</struts>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" id="WebApp_ID" version="4.0">
  <!-- 配置spring -->
  <context-param>
  	<param-name>contextConfigLocation</param-name>
  	<param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <listener>
  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- struts2配置 -->
  <filter>
  	<filter-name>struts2</filter-name>
  	<filter-class>org.apache.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
  </filter>
  <filter-mapping>
  	<filter-name>struts2</filter-name>
  	<url-pattern>*.action</url-pattern>
  </filter-mapping>
  <display-name>16spring4_stucts2_mybatis</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
</web-app>

list.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerName(); %>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
	<head>
		<base href="<%=basePath%>">
		<title>My JSP 'index.jsp' starting page</title>
		<meta http-equiv="prama" content="no-cache">
		<meta http-equiv="cache-control" content="no-cache">
		<meta http-equiv="expires" content="0">
		<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
		<meta http-equiv="description" content="This is my page">
		<!--
		<link rel="stylesheet" type="text/css" href="style.css">
 		-->
</head>
<body>
	<table width="80%" align="center">
		<tr>
			<td>编号</td>
			<td>姓名</td>
			<td>密码</td>
		</tr>
		<c:forEach items="${list }" var="bean">
		<tr>
			<td>${bean.id }</td>
			<td>${bean.name }</td>
			<td>${bean.pwd}</td>
		</tr>
		</c:forEach>
	</table>
</body>
</html>

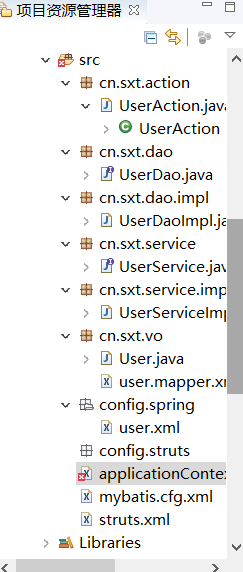

视频中到这里就可以运行了，不过我applicationContext.xml出错了。。。

一会多个叉一会少个叉。。。。不管了，理论上就算这里有叉也是可以运行的，大概我哪里又拼写错了。

拷贝一份Struts到config.struts包中，改名为user.xml

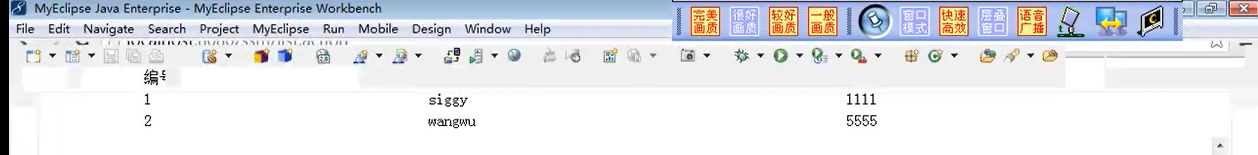

理论上的运行结果如下，然而我上面的问题都没解决，进行不到这里

等等，叉解决了，可能是因为我挪动了jar包，点edit修改后重启eclipse就没叉了。不过，还是不知道哪里有问题，估计是配置文件写错字母了。

本文链接：https://blog.csdn.net/qq_38547320/article/details/104884656

原作者删帖不实内容删帖广告或垃圾文章投诉

智能推荐

Alluxio的命令行接口_alluxio.exception.alluxioexception: active syncing_气运2020的博客-程序员秘密

一、命令行接口——普通用户命令fs命令行接口 - Alluxio v2.6.0 DocumentationAlluxio命令行接口为用户提供了基本的文件系统操作，可以使用以下命令来得到所有子命令：$ ./bin/alluxio fsUsage: alluxio fs [generic options] [cat <path>] [checkConsistency [-r] <Alluxio path>] ...对于用Allux

(三）Redis数据类型之hash类型_Origin_afan的博客-程序员秘密

Hash类型存储的困惑对象类数据的存储如果具有较为频繁的更新需求操作会显得笨重因为第一个拿数据容易，但是更新数据难，需要整个覆盖掉。然而hash的话，就将外面的user????xxxx作为key，存储空间的name作为field（属性），然后剩下的就作为value，然后要访问指定字段，就访问对应的属性即可。hash类型新的存储需求：对一系列存储的数据进行编组，方便管理，典型应用存储对象信息需要的内存结构：一个存储空间保存多少个键值对数据hash类型：底层使用哈希表结构实现数据存储ha

Android TextView（EditView）文字底部或者中间加横线_三个view标签中间有横线_起舞的红叶的博客-程序员秘密

Android TextView（EditView）文字底部或者中间加横线tv = (TextView) this .findViewById(R.id. text_view ); 中间加横线 tv.getPaint().setFlags(Paint. STRIKE_THRU_TEXT_FLAG ); 底部加横线： tv .getPaint().setFlags(Pain

cocos2dx 几个精灵依照顺序播放动画解决方法_weixin_30933531的博客-程序员秘密

我先描写叙述一下这个问题：拿之前做的卡牌游戏来说。假设一方场上有3张牌，那么肯定要以一种顺序来播放攻击动画。我是以从左到右的方式。我的解决方案是向每张牌都传递一个延时參数，然后在runAction的时候使用DelyTime，可是这样的方法太麻烦。如今说说更好的方法吧：基本思路是vector与callfunc相结合。一：先在类里定义数...

python数据库变化监测_python检测mysql状态脚本--参考_weixin_39617502的博客-程序员秘密

python检测mysql状态脚本--参考#!/usr/bin/envpython#encoding:utf-8importMySQLdbimportparamikoimportsys,osfromemail.mime.textimportMIMETextfromemail.headerimportHeaderimportsmtplibdb1_ip="172.17.2.51"...

zookeeper 和 eureka 有什么区别，哪个更适合作为注册中心？_极品小蛋挞的博客-程序员秘密

zookeeper 和 eureka 有什么区别，哪个更适合作为注册中心？最近接触到一个问题，Zookeeper 和 Eureka 有什么区别，为什么注册中心一定要用 Eureka ，今天又看到一篇文章说京东面试好像有问到这个问题，所以来记录一下自己的理解：CAP 原则谈到这个问题，最主要的是明白什么事 CAP 原则：C（Consistency）：数据一致性。分布式系统中，数据会有副本，无......
