前言

DeepFM算法是对wide&deep的改进，是将wide层变成FM。主要改进有如下：

1. 加强了对浅层特征网络组合的能力
2. FM层和Deep层共享embedding
3. 自动交叉特征,端到端,无需特征工程
4. 评估模型需要用到新指标,Gini Normalization

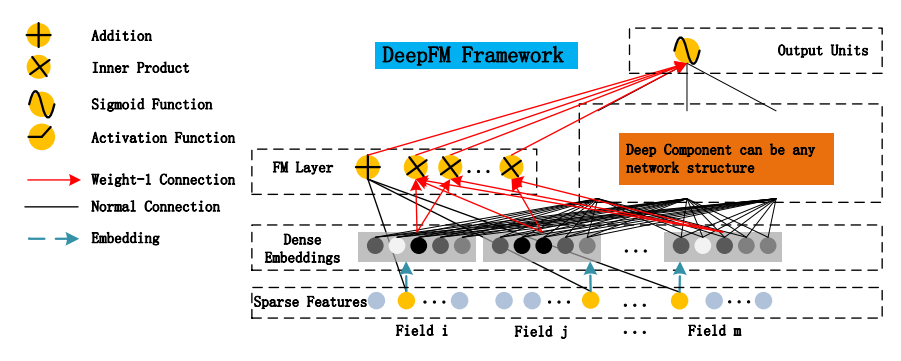

一、模型结构

FM模型部分是由一阶特征和二阶特征Concatenate到一起在经过一个Sigmoid得到logits，所以在实现的时候需要单独考虑linear部分和FM交叉特征部分。
Deep Module是为了学习高阶的特征组合，在上图中使用用全连接的方式将Dense Embedding输入到Hidden Layer，这里面Dense Embeddings就是为了解决DNN中的参数爆炸问题，这也是推荐模型中常用的处理方法。

二、数据输入处理

在Deep FM输入数据的过程中,为了防止内存爆炸,one-hot的表示方法会过于稀疏, 采用特殊的数据存储方式.采用feature_index和feature_values方便其后embedding_lookup查找对应的隐向量表示.对离散特征,索引值为n个,就有n个index,递增加入其feature_values为1. 对于连续型变量, 索引值只有1个, 取值values是原值的本身.

图中的黄点蓝点代表什么?
每个Field都含有不同的特征分类, 输入一个样本, 一个field上有且仅有一个选项有值, 即黄色的代表1, 蓝色代表0.

• 尽管Field输入长度不同,但是embedding后向量的长度均为k
• 在FM中得到隐变量Vik现在为嵌入层网络的权重

三、代码实现

#encoding:utf-8
"""
Tensorflow implementation of DeepFM [1]

Reference:
[1] DeepFM: A Factorization-Machine based Neural Network for CTR Prediction,
    Huifeng Guo, Ruiming Tang, Yunming Yey, Zhenguo Li, Xiuqiang He.
"""

import numpy as np
import tensorflow as tf
from sklearn.base import BaseEstimator, TransformerMixin
from sklearn.metrics import roc_auc_score
from time import time
from tensorflow.contrib.layers.python.layers import batch_norm as batch_norm
#from yellowfin import YFOptimizer


class DeepFM(BaseEstimator, TransformerMixin):
    def __init__(self, feature_size, field_size,
                 embedding_size=8, dropout_fm=[1.0, 1.0],
                 deep_layers=[32, 32], dropout_deep=[0.5, 0.5, 0.5],
                 deep_layers_activation=tf.nn.relu,
                 epoch=10, batch_size=256,
                 learning_rate=0.001, optimizer_type="adam",
                 batch_norm=0, batch_norm_decay=0.995,
                 verbose=False, random_seed=2016,
                 use_fm=True, use_deep=True,
                 loss_type="logloss", eval_metric=roc_auc_score,
                 l2_reg=0.0, greater_is_better=True):
        assert (use_fm or use_deep)
        assert loss_type in ["logloss", "mse"], \
            "loss_type can be either 'logloss' for classification task or 'mse' for regression task"

        self.feature_size = feature_size        # denote as M, size of the feature dictionary
        self.field_size = field_size            # denote as F, size of the feature fields
        self.embedding_size = embedding_size    # denote as K, size of the feature embedding

        self.dropout_fm = dropout_fm
        # 定义DNN的层数
        self.deep_layers = deep_layers
        self.dropout_deep = dropout_deep
        # DNN的激活函数
        self.deep_layers_activation = deep_layers_activation
        self.use_fm = use_fm
        self.use_deep = use_deep
        self.l2_reg = l2_reg

        self.epoch = epoch
        self.batch_size = batch_size
        self.learning_rate = learning_rate
        self.optimizer_type = optimizer_type #优化器，adam

        self.batch_norm = batch_norm #normalization用的
        self.batch_norm_decay = batch_norm_decay

        self.verbose = verbose #是否打印训练过程中的信息
        self.random_seed = random_seed
        self.loss_type = loss_type
        self.eval_metric = eval_metric
        self.greater_is_better = greater_is_better
        self.train_result, self.valid_result = [], []

        self._init_graph()


    def _init_graph(self):
        self.graph = tf.Graph()
        with self.graph.as_default(): #设置为默认图

            tf.set_random_seed(self.random_seed)

            self.feat_index = tf.placeholder(tf.int32, shape=[None, None],
                                                 name="feat_index")  # None * F
            self.feat_value = tf.placeholder(tf.float32, shape=[None, None],
                                                 name="feat_value")  # None * F
            self.label = tf.placeholder(tf.float32, shape=[None, 1], name="label")  # None * 1
            self.dropout_keep_fm = tf.placeholder(tf.float32, shape=[None], name="dropout_keep_fm")
            self.dropout_keep_deep = tf.placeholder(tf.float32, shape=[None], name="dropout_keep_deep")
            self.train_phase = tf.placeholder(tf.bool, name="train_phase")

            self.weights = self._initialize_weights()

            # model
            #按照index索引找出权重矩阵中对应的embedding表示，再与对应的feat_value相乘
            self.embeddings = tf.nn.embedding_lookup(self.weights["feature_embeddings"],
                                                             self.feat_index)  # None * F * K
            feat_value = tf.reshape(self.feat_value, shape=[-1, self.field_size, 1])
            self.embeddings = tf.multiply(self.embeddings, feat_value)

            # ---------- first order term ----------
            #计算一次项，找到索引对应的偏置，b*w随后按照axis=2求和
            self.y_first_order = tf.nn.embedding_lookup(self.weights["feature_bias"], self.feat_index) # None * F * 1
            self.y_first_order = tf.reduce_sum(tf.multiply(self.y_first_order, feat_value), 2)  # None * F
            self.y_first_order = tf.nn.dropout(self.y_first_order, self.dropout_keep_fm[0]) # None * F

            # ---------- second order term ---------------
            # sum_square part
            #Vik*Xik求和的平方-(Vik*Xik)^2的和
            self.summed_features_emb = tf.reduce_sum(self.embeddings, 1)  # None * K
            self.summed_features_emb_square = tf.square(self.summed_features_emb)  # None * K

            # square_sum part
            self.squared_features_emb = tf.square(self.embeddings)
            self.squared_sum_features_emb = tf.reduce_sum(self.squared_features_emb, 1)  # None * K

            # second order
            self.y_second_order = 0.5 * tf.subtract(self.summed_features_emb_square, self.squared_sum_features_emb)  # None * K
            self.y_second_order = tf.nn.dropout(self.y_second_order, self.dropout_keep_fm[1])  # None * K

            # ---------- Deep component ----------
            # DNN的输入, Filed * K ，将embedding part的输出再经过几层全链接层
            self.y_deep = tf.reshape(self.embeddings, shape=[-1, self.field_size * self.embedding_size]) # None * (F*K)
            self.y_deep = tf.nn.dropout(self.y_deep, self.dropout_keep_deep[0])
            for i in range(0, len(self.deep_layers)):
                self.y_deep = tf.add(tf.matmul(self.y_deep, self.weights["layer_%d" %i]), self.weights["bias_%d"%i]) # None * layer[i] * 1
                if self.batch_norm:
                    self.y_deep = self.batch_norm_layer(self.y_deep, train_phase=self.train_phase, scope_bn="bn_%d" %i) # None * layer[i] * 1
                self.y_deep = self.deep_layers_activation(self.y_deep)
                self.y_deep = tf.nn.dropout(self.y_deep, self.dropout_keep_deep[1+i]) # dropout at each Deep layer

            # ---------- DeepFM ----------
            if self.use_fm and self.use_deep:
                concat_input = tf.concat([self.y_first_order, self.y_second_order, self.y_deep], axis=1)
            elif self.use_fm:
                concat_input = tf.concat([self.y_first_order, self.y_second_order], axis=1)
            elif self.use_deep:
                concat_input = self.y_deep
            self.out = tf.add(tf.matmul(concat_input, self.weights["concat_projection"]), self.weights["concat_bias"])

            # loss
            if self.loss_type == "logloss":
                self.out = tf.nn.sigmoid(self.out)
                self.loss = tf.losses.log_loss(self.label, self.out)
            elif self.loss_type == "mse":
                self.loss = tf.nn.l2_loss(tf.subtract(self.label, self.out))
            # l2 regularization on weights
            if self.l2_reg > 0:
                self.loss += tf.contrib.layers.l2_regularizer(
                    self.l2_reg)(self.weights["concat_projection"])
                if self.use_deep:
                    for i in range(len(self.deep_layers)):
                        self.loss += tf.contrib.layers.l2_regularizer(
                            self.l2_reg)(self.weights["layer_%d"%i])

            # optimizer
            if self.optimizer_type == "adam":
                self.optimizer = tf.train.AdamOptimizer(learning_rate=self.learning_rate, beta1=0.9, beta2=0.999,
                                                        epsilon=1e-8).minimize(self.loss)
            elif self.optimizer_type == "adagrad":
                self.optimizer = tf.train.AdagradOptimizer(learning_rate=self.learning_rate,
                                                           initial_accumulator_value=1e-8).minimize(self.loss)
            elif self.optimizer_type == "gd":
                self.optimizer = tf.train.GradientDescentOptimizer(learning_rate=self.learning_rate).minimize(self.loss)
            elif self.optimizer_type == "momentum":
                self.optimizer = tf.train.MomentumOptimizer(learning_rate=self.learning_rate, momentum=0.95).minimize(
                    self.loss)
            #elif self.optimizer_type == "yellowfin":
            #    self.optimizer = YFOptimizer(learning_rate=self.learning_rate, momentum=0.0).minimize(
            #        self.loss)

            # init
            self.saver = tf.train.Saver()
            init = tf.global_variables_initializer()
            self.sess = self._init_session()
            self.sess.run(init)

            # number of params
            total_parameters = 0
            for variable in self.weights.values():
                shape = variable.get_shape()
                variable_parameters = 1
                for dim in shape:
                    variable_parameters *= dim.value
                total_parameters += variable_parameters
            if self.verbose > 0:
                print("#params: %d" % total_parameters)


    def _init_session(self):
        config = tf.ConfigProto(device_count={
    "gpu": 0})
        config.gpu_options.allow_growth = True
        return tf.Session(config=config)


    def _initialize_weights(self):
        weights = dict()

        # embeddings
        weights["feature_embeddings"] = tf.Variable(
            tf.random_normal([self.feature_size, self.embedding_size], 0.0, 0.01),
            name="feature_embeddings")  # feature_size * K
        weights["feature_bias"] = tf.Variable(
            tf.random_uniform([self.feature_size, 1], 0.0, 1.0), name="feature_bias")  # feature_size * 1

        # deep layers
        num_layer = len(self.deep_layers)
        input_size = self.field_size * self.embedding_size
        glorot = np.sqrt(2.0 / (input_size + self.deep_layers[0]))
        weights["layer_0"] = tf.Variable(
            np.random.normal(loc=0, scale=glorot, size=(input_size, self.deep_layers[0])), dtype=np.float32)
        weights["bias_0"] = tf.Variable(np.random.normal(loc=0, scale=glorot, size=(1, self.deep_layers[0])),
                                                        dtype=np.float32)  # 1 * layers[0]
        for i in range(1, num_layer):
            glorot = np.sqrt(2.0 / (self.deep_layers[i-1] + self.deep_layers[i]))
            weights["layer_%d" % i] = tf.Variable(
                np.random.normal(loc=0, scale=glorot, size=(self.deep_layers[i-1], self.deep_layers[i])),
                dtype=np.float32)  # layers[i-1] * layers[i]
            weights["bias_%d" % i] = tf.Variable(
                np.random.normal(loc=0, scale=glorot, size=(1, self.deep_layers[i])),
                dtype=np.float32)  # 1 * layer[i]

        # final concat projection layer
        if self.use_fm and self.use_deep:
            input_size = self.field_size + self.embedding_size + self.deep_layers[-1]
        elif self.use_fm:
            input_size = self.field_size + self.embedding_size
        elif self.use_deep:
            input_size = self.deep_layers[-1]
        glorot = np.sqrt(2.0 / (input_size + 1))
        weights["concat_projection"] = tf.Variable(
                        np.random.normal(loc=0, scale=glorot, size=(input_size, 1)),
                        dtype=np.float32)  # layers[i-1]*layers[i]
        weights["concat_bias"] = tf.Variable(tf.constant(0.01), dtype=np.float32)

        return weights


    def batch_norm_layer(self, x, train_phase, scope_bn):
        bn_train = batch_norm(x, decay=self.batch_norm_decay, center=True, scale=True, updates_collections=None,
                              is_training=True, reuse=None, trainable=True, scope=scope_bn)
        bn_inference = batch_norm(x, decay=self.batch_norm_decay, center=True, scale=True, updates_collections=None,
                                  is_training=False, reuse=True, trainable=True, scope=scope_bn)
        z = tf.cond(train_phase, lambda: bn_train, lambda: bn_inference)
        return z


    def get_batch(self, Xi, Xv, y, batch_size, index):
        start = index * batch_size
        end = (index+1) * batch_size
        end = end if end < len(y) else len(y)
        return Xi[start:end], Xv[start:end], [[y_] for y_ in y[start:end]]


    # shuffle three lists simutaneously
    def shuffle_in_unison_scary(self, a, b, c):
        rng_state = np.random.get_state()
        np.random.shuffle(a)
        np.random.set_state(rng_state)
        np.random.shuffle(b)
        np.random.set_state(rng_state)
        np.random.shuffle(c)


    def fit_on_batch(self, Xi, Xv, y):
        feed_dict = {
    self.feat_index: Xi,
                     self.feat_value: Xv,
                     self.label: y,
                     self.dropout_keep_fm: self.dropout_fm,
                     self.dropout_keep_deep: self.dropout_deep,
                     self.train_phase: True}
        loss, opt = self.sess.run((self.loss, self.optimizer), feed_dict=feed_dict)
        return loss


    def fit(self, Xi_train, Xv_train, y_train,
            Xi_valid=None, Xv_valid=None, y_valid=None,
            early_stopping=False, refit=False):
        """
        :param Xi_train: [[ind1_1, ind1_2, ...], [ind2_1, ind2_2, ...], ..., [indi_1, indi_2, ..., indi_j, ...], ...]
                         indi_j is the feature index of feature field j of sample i in the training set
        :param Xv_train: [[val1_1, val1_2, ...], [val2_1, val2_2, ...], ..., [vali_1, vali_2, ..., vali_j, ...], ...]
                         vali_j is the feature value of feature field j of sample i in the training set
                         vali_j can be either binary (1/0, for binary/categorical features) or float (e.g., 10.24, for numerical features)
        :param y_train: label of each sample in the training set
        :param Xi_valid: list of list of feature indices of each sample in the validation set
        :param Xv_valid: list of list of feature values of each sample in the validation set
        :param y_valid: label of each sample in the validation set
        :param early_stopping: perform early stopping or not
        :param refit: refit the model on the train+valid dataset or not
        :return: None
        """
        has_valid = Xv_valid is not None
        for epoch in range(self.epoch):
            t1 = time()
            self.shuffle_in_unison_scary(Xi_train, Xv_train, y_train)
            total_batch = int(len(y_train) / self.batch_size)
            for i in range(total_batch):
                Xi_batch, Xv_batch, y_batch = self.get_batch(Xi_train, Xv_train, y_train, self.batch_size, i)
                self.fit_on_batch(Xi_batch, Xv_batch, y_batch)

            # evaluate training and validation datasets
            train_result = self.evaluate(Xi_train, Xv_train, y_train)
            self.train_result.append(train_result)
            if has_valid:
                valid_result = self.evaluate(Xi_valid, Xv_valid, y_valid)
                self.valid_result.append(valid_result)
            if self.verbose > 0 and epoch % self.verbose == 0:
                if has_valid:
                    print("[%d] train-result=%.4f, valid-result=%.4f [%.1f s]"
                        % (epoch + 1, train_result, valid_result, time() - t1))
                else:
                    print("[%d] train-result=%.4f [%.1f s]"
                        % (epoch + 1, train_result, time() - t1))
            if has_valid and early_stopping and self.training_termination(self.valid_result):
                break

        # fit a few more epoch on train+valid until result reaches the best_train_score
        if has_valid and refit:
            if self.greater_is_better:
                best_valid_score = max(self.valid_result)
            else:
                best_valid_score = min(self.valid_result)
            best_epoch = self.valid_result.index(best_valid_score)
            best_train_score = self.train_result[best_epoch]
            Xi_train = Xi_train + Xi_valid
            Xv_train = Xv_train + Xv_valid
            y_train = y_train + y_valid
            for epoch in range(100):
                self.shuffle_in_unison_scary(Xi_train, Xv_train, y_train)
                total_batch = int(len(y_train) / self.batch_size)
                for i in range(total_batch):
                    Xi_batch, Xv_batch, y_batch = self.get_batch(Xi_train, Xv_train, y_train,
                                                                self.batch_size, i)
                    self.fit_on_batch(Xi_batch, Xv_batch, y_batch)
                # check
                train_result = self.evaluate(Xi_train, Xv_train, y_train)
                if abs(train_result - best_train_score) < 0.001 or \
                    (self.greater_is_better and train_result > best_train_score) or \
                    ((not self.greater_is_better) and train_result < best_train_score):
                    break


    def training_termination(self, valid_result):
        if len(valid_result) > 5:
            if self.greater_is_better:
                if valid_result[-1] < valid_result[-2] and \
                    valid_result[-2] < valid_result[-3] and \
                    valid_result[-3] < valid_result[-4] and \
                    valid_result[-4] < valid_result[-5]:
                    return True
            else:
                if valid_result[-1] > valid_result[-2] and \
                    valid_result[-2] > valid_result[-3] and \
                    valid_result[-3] > valid_result[-4] and \
                    valid_result[-4] > valid_result[-5]:
                    return True
        return False


    def predict(self, Xi, Xv):
        """
        :param Xi: list of list of feature indices of each sample in the dataset
        :param Xv: list of list of feature values of each sample in the dataset
        :return: predicted probability of each sample
        """
        # dummy y
        dummy_y = [1] * len(Xi)
        batch_index = 0
        Xi_batch, Xv_batch, y_batch = self.get_batch(Xi, Xv, dummy_y, self.batch_size, batch_index)
        y_pred = None
        while len(Xi_batch) > 0:
            num_batch = len(y_batch)
            feed_dict = {
    self.feat_index: Xi_batch,
                         self.feat_value: Xv_batch,
                         self.label: y_batch,
                         self.dropout_keep_fm: [1.0] * len(self.dropout_fm),
                         self.dropout_keep_deep: [1.0] * len(self.dropout_deep),
                         self.train_phase: False}
            batch_out = self.sess.run(self.out, feed_dict=feed_dict)

            if batch_index == 0:
                y_pred = np.reshape(batch_out, (num_batch,))
            else:
                y_pred = np.concatenate((y_pred, np.reshape(batch_out, (num_batch,))))

            batch_index += 1
            Xi_batch, Xv_batch, y_batch = self.get_batch(Xi, Xv, dummy_y, self.batch_size, batch_index)

        return y_pred


    def evaluate(self, Xi, Xv, y):
        """
        :param Xi: list of list of feature indices of each sample in the dataset
        :param Xv: list of list of feature values of each sample in the dataset
        :param y: label of each sample in the dataset
        :return: metric of the evaluation
        """
        y_pred = self.predict(Xi, Xv)
        return self.eval_metric(y, y_pred)

参考

https://github.com/datawhalechina/team-learning-rs/tree/master/DeepRecommendationModel
