一、安装docker、docker-compose

1、不会安装docker的请移步----》centos7安装docker  Ubantu16.04安装docker

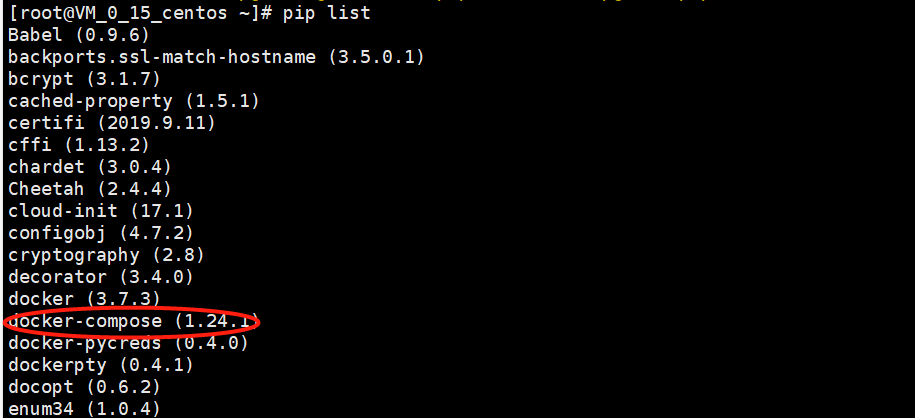

2、安装docker-compose(Centos7环境无pip的----》centos7安装pip2)

pip install docker-compose

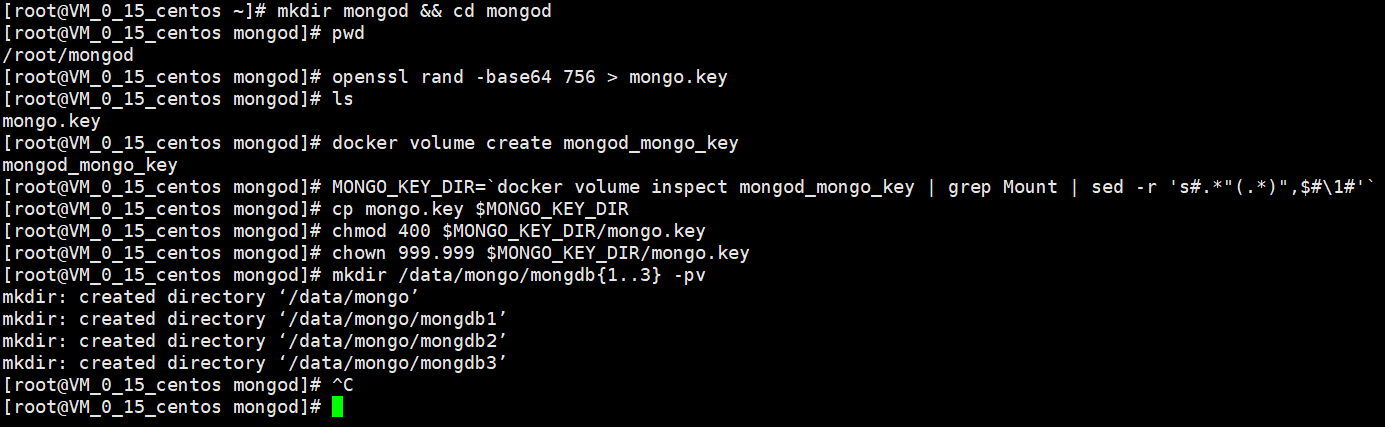

二、创建副本集所需的key

mkdir mongod && cd mongod

openssl rand -base64 756 > mongo.key

docker volume create mongod_mongo_key

MONGO_KEY_DIR=`docker volume inspect mongod_mongo_key | grep Mount | sed -r 's#.*"(.*)",$#\1#'`

cp mongo.key $MONGO_KEY_DIR

chmod 400 $MONGO_KEY_DIR/mongo.key

chown 999.999 $MONGO_KEY_DIR/mongo.key

mkdir /data/mongo/mongdb{1..3} -pv

三、创建docker-compose文件

#映射/data/mongo/mongdb{1,2,3}目录到容器里，将数据持久化到磁盘
#映射出三个端口，以便外部用户连接
#MONGO_INITDB_ROOT_USERNAME：管理员用户的账号
#MONGO_INITDB_ROOT_PASSWORD：管理员用户的密码

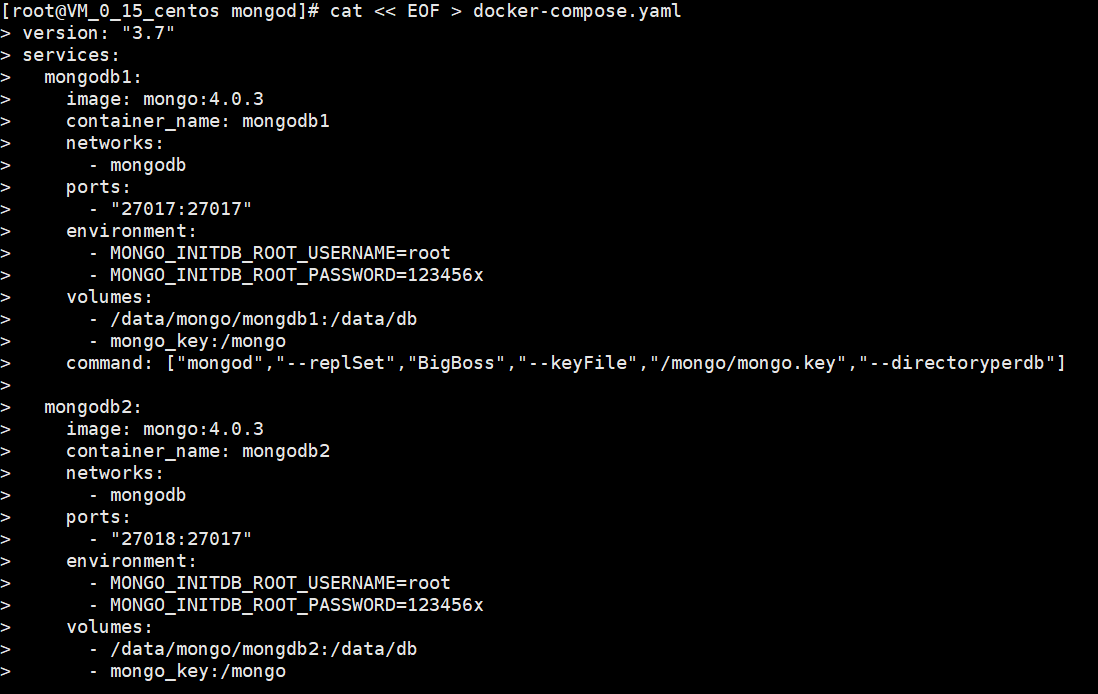

cat << EOF > docker-compose.yaml
version: "3.7"
services:
  mongodb1:
    image: mongo:4.0.3
    container_name: mongodb1
    networks:
      - mongodb
    ports:
      - "27017:27017"
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=123456x
    volumes:
      - /data/mongo/mongdb1:/data/db
      - mongo_key:/mongo
    command: ["mongod","--replSet","BigBoss","--keyFile","/mongo/mongo.key","--directoryperdb"]

  mongodb2:
    image: mongo:4.0.3
    container_name: mongodb2
    networks:
      - mongodb
    ports:
      - "27018:27017"
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=123456x
    volumes:
      - /data/mongo/mongdb2:/data/db
      - mongo_key:/mongo
    command: ["mongod","--replSet","BigBoss","--keyFile","/mongo/mongo.key","--directoryperdb"]

  mongodb3:
    image: mongo:4.0.3
    container_name: mongodb3
    networks:
      - mongodb
    ports:
      - "27019:27017"
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=123456x
    volumes:
      - /data/mongo/mongdb3:/data/db
      - mongo_key:/mongo
    command: ["mongod","--replSet","BigBoss","--keyFile","/mongo/mongo.key","--directoryperdb"]

networks:
  mongodb:
    driver: bridge
    name: mongodb

volumes:
  mongo_key:
EOF

四、启动副本集

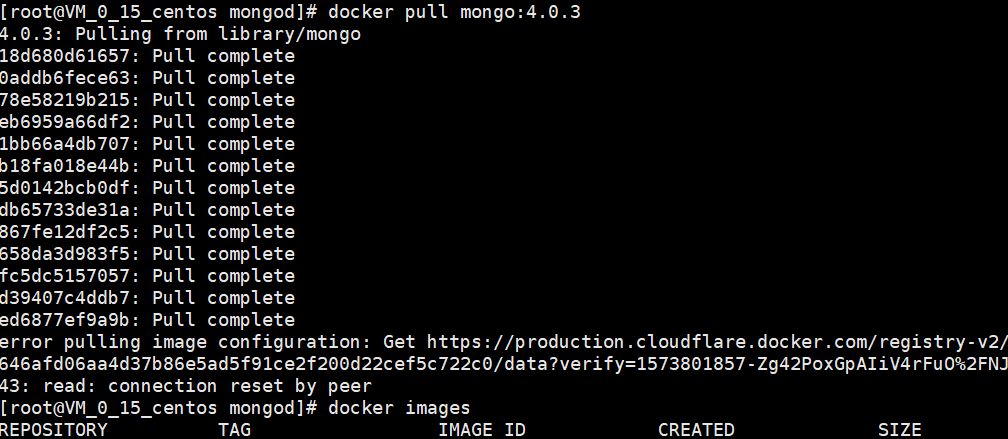

1、拉取mongo4.0的镜像

docker pull mongo:4.0.3

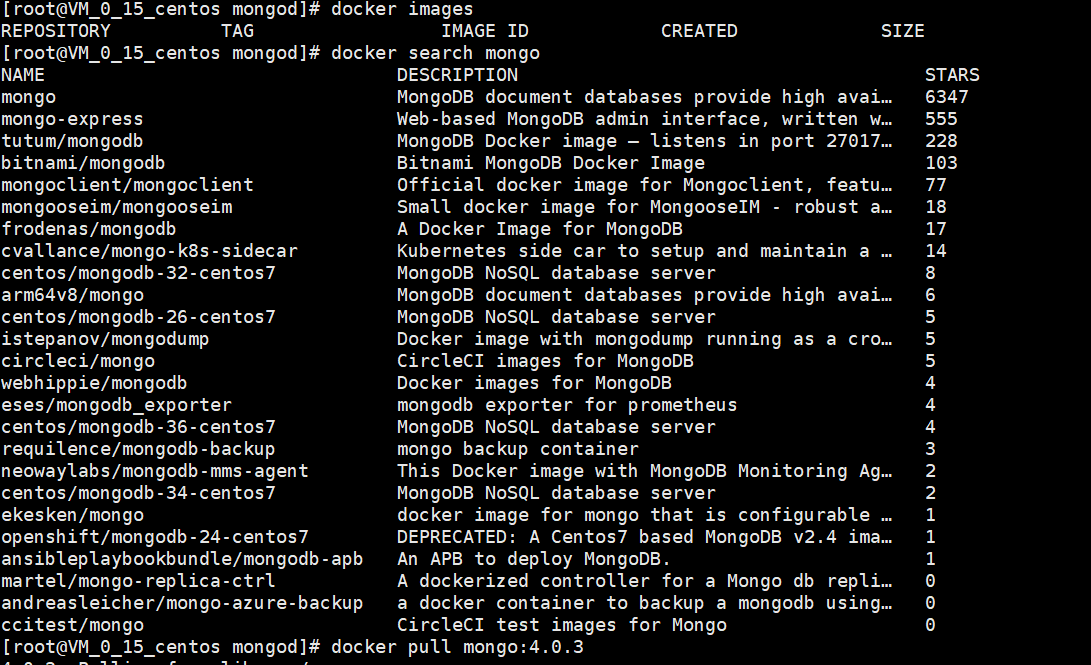

我这失败了一次，后面查了一下mongo镜像docker search mongo,docker官网是有这个镜像的，然后有拉取了一次

2、执行docker-compose文件，在docker-compose.yaml同级目录下执行

docker-compose up -d

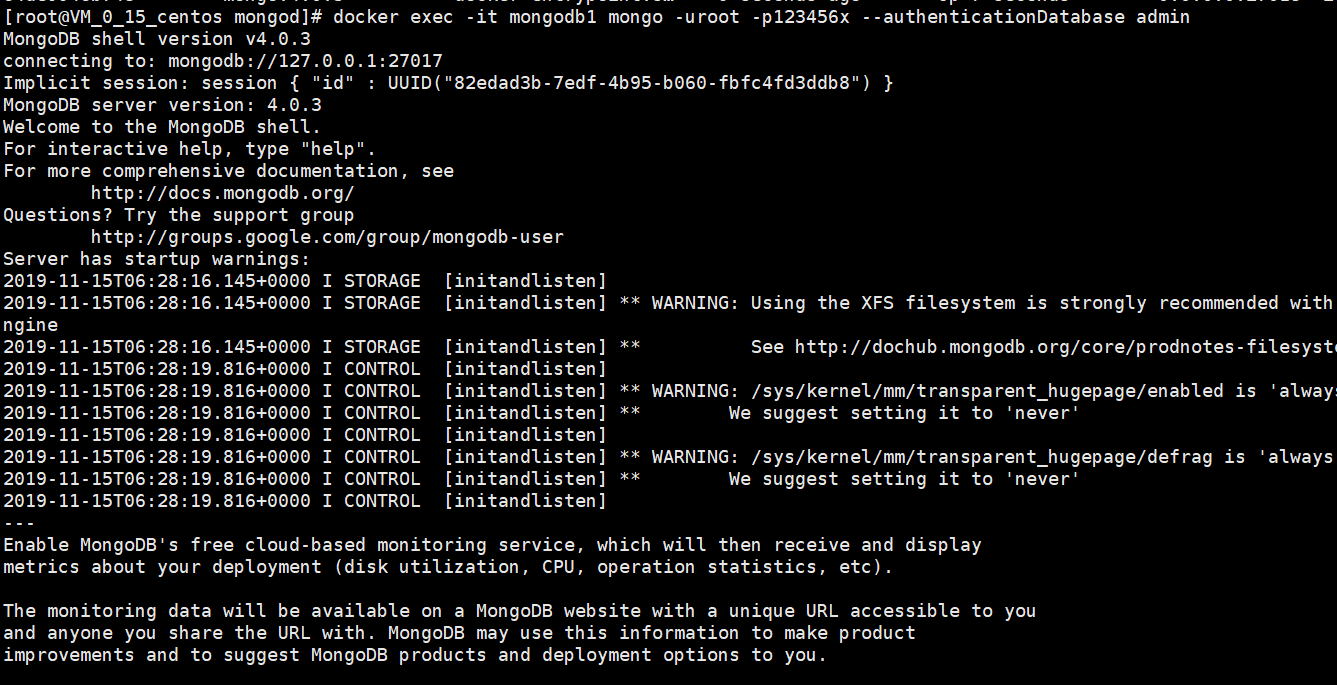

3、连接mongodb1容器，开始配置集群

docker exec -it mongodb1 mongo -uroot -p123456x --authenticationDatabase admin

#三节点，其中一个为投票节点，并隐藏
#注意host的IP地址，一定要让客户端也能连接所有的地址
#_id的值为--replSet参数后的字符串

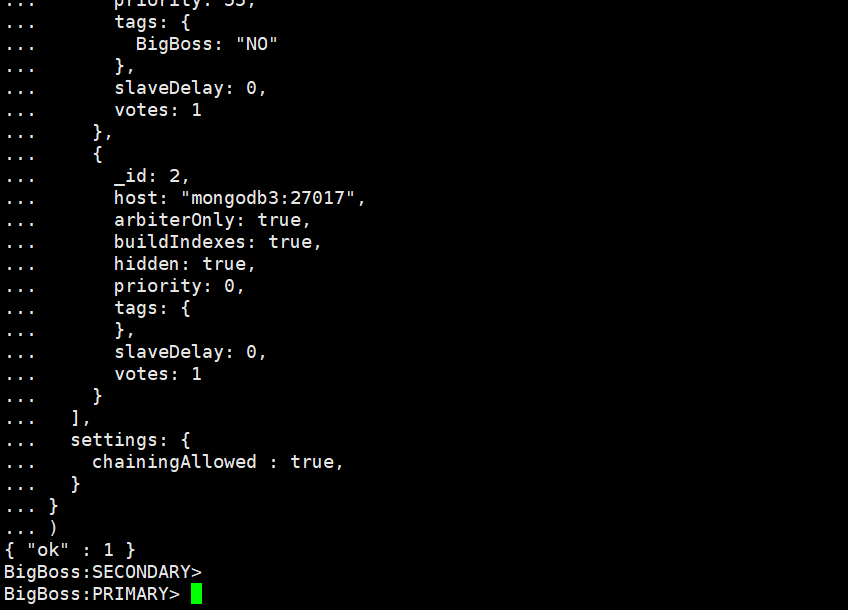

rs.initiate(
{
  _id: "BigBoss",
  version: 1,
  protocolVersion: 1,
  writeConcernMajorityJournalDefault: true,
  members: [
    {
      _id: 0,
      host: "mongodb1:27017",
      arbiterOnly: false,
      buildIndexes: true,
      hidden: false,
      priority: 66,
      tags: {
        BigBoss: "YES"
      },
      slaveDelay: 0,
      votes: 1
    },
    {
      _id: 1,
      host: "mongodb2:27017",
      arbiterOnly: false,
      buildIndexes: true,
      hidden: false,
      priority: 55,
      tags: {
        BigBoss: "NO"
      },
      slaveDelay: 0,
      votes: 1
    },
    {
      _id: 2,
      host: "mongodb3:27017",
      arbiterOnly: true,
      buildIndexes: true,
      hidden: true,
      priority: 0,
      tags: {
      },
      slaveDelay: 0,
      votes: 1
    }
  ],
  settings: {
    chainingAllowed : true,
  }
}
)

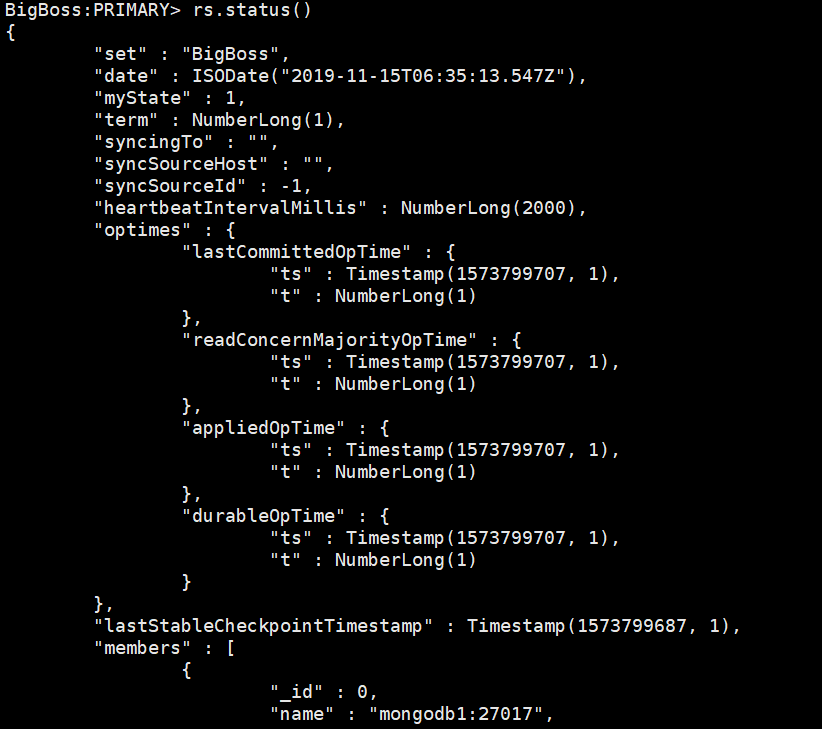

4、查看状态

rs.status()

五、检测

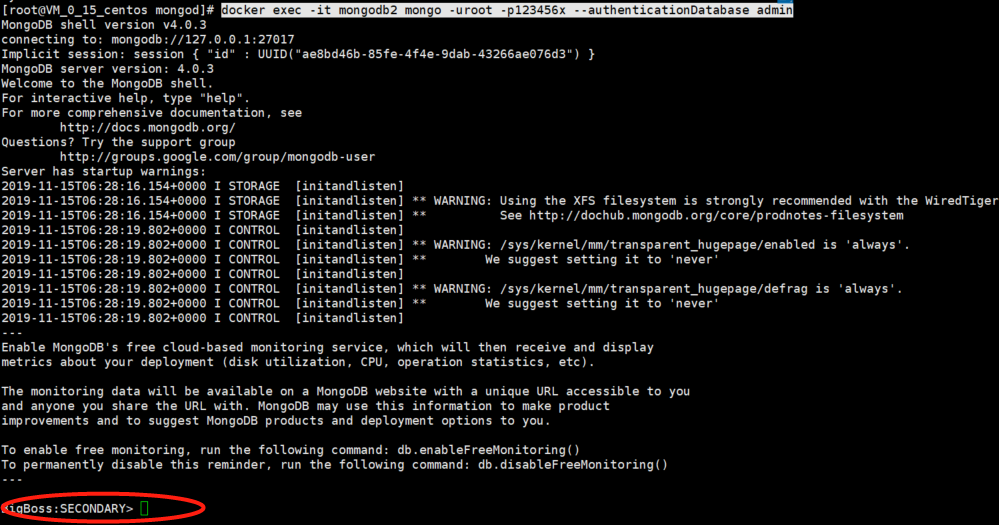

1、进入mongodb2容器中

docker exec -it mongodb2 mongo -uroot -p123456x --authenticationDatabase admin

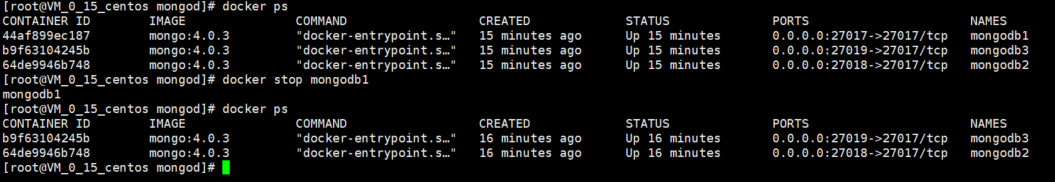

2、停止PRIMARY的容器

docker stop mongodb1

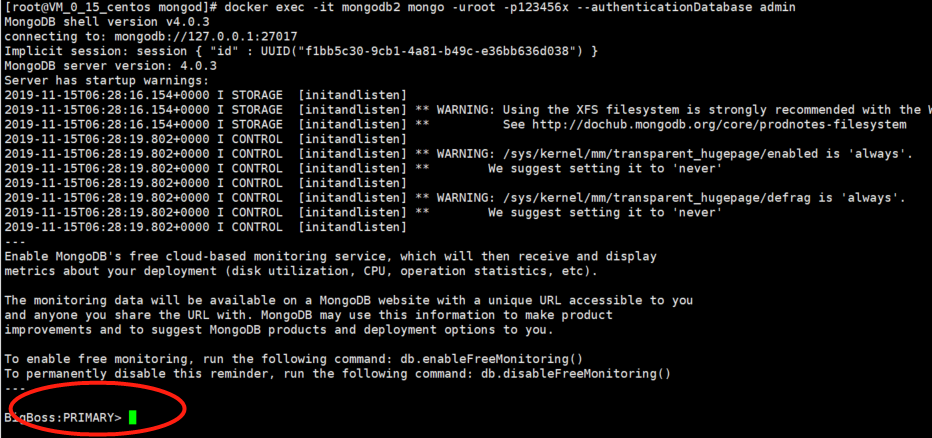

3、连接mongdb2容器查看状态是否改变

docker exec -it mongodb2 mongo -uroot -p123456x --authenticationDatabase admin

MongoDB4.0副本集搭建完毕
