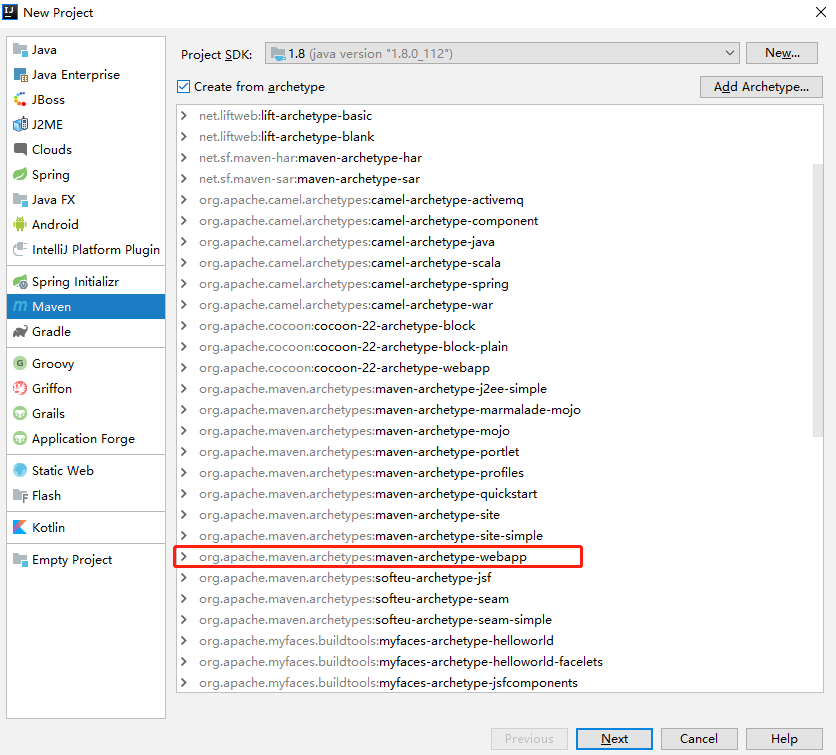

1. 首先创建一个maven项目，命名为springSecurity_01(webapp项目)

因为idea默认创建的webapp项目的web.xml是2.3版本的，所以需要将版本更换成2.5版本

<?xml version="1.0" encoding="UTF-8"?>

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

 	xmlns="http://java.sun.com/xml/ns/javaee"

 	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee

http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"

 	version="2.5">

</web-app>

2. 导入相关依赖

 <properties>
        <jdk.version>1.8</jdk.version>
        <spring.version>4.3.10.RELEASE</spring.version>
        <spring.security.version>4.2.3.RELEASE</spring.security.version>
        <jstl.version>1.2</jstl.version>
        <servlet.version>2.5</servlet.version>
    </properties>


    <dependencies>
        <!-- Spring dependencies -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>


        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Spring Security -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>${spring.security.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>${spring.security.version}</version>
        </dependency>

        <!-- jsp -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>${jstl.version}</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>${servlet.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.8</version>
        </dependency>

    </dependencies>


    <build>
        <plugins>
            <!-- jdk 版本插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.2</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                    <showWarnings>true</showWarnings>
                </configuration>
            </plugin>

            <!-- tomcat7 插件 -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.1</version>
                <configuration>
                    <port>8080</port>
                    <path>/ss1</path>
                    <server>tomcat7</server>
                </configuration>
            </plugin>
        </plugins>

    </build>

3. 对web.xm进行配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">



  <!-- 配置监听器，服务已启动即启动spring容器 -->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- 配置pring核心配置文件的路径 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>
      classpath:spring/ApplicationContext.xml
      classpath:security/springSecurity.xml
    </param-value>
  </context-param>



  <!-- 配置DispatcherServlet，启动时加载springMvc.xml配置文件 -->
  <servlet>
    <servlet-name>springDispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:mvc/springMvc.xml</param-value>
    </init-param>
    <!--服务器一启动即启动servlet-->
    <load-on-startup>1</load-on-startup>
  </servlet>

  <!-- Map all requests to the DispatcherServlet for handling -->
  <servlet-mapping>
    <servlet-name>springDispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!-- springSecurity过滤器链 -->
  <filter>
    <filter-name>springSecurityFilterChain</filter-name>
    <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
  </filter>
  <filter-mapping>
    <filter-name>springSecurityFilterChain</filter-name>
    <!--springsecurity将对所有的请求进行过滤 -->
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!-- 编码过滤器链 -->
  <filter>
    <filter-name>CharacterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>CharacterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

</web-app>

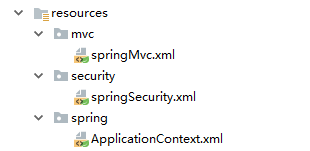

4. 此时我们在web.xml中配置了ApplicationContext.xml.springMvc.xml、springSeccurity.xml的文件路径，但是我们目前还没有进行创建，所以接下来我们按照web.xml中配置的路径进行一一创建

1. 首先对ApplicationContext.xml进行配置

 <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

</beans>

2. 然后针对springMvc.xml进行配置

 <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:p="http://www.springframework.org/schema/p"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
      http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
      http://www.springframework.org/schema/context
      http://www.springframework.org/schema/context/spring-context-3.2.xsd
      http://www.springframework.org/schema/mvc
      http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">

</beans>

3. 最后我们对springSecurity.xml进行配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:security="http://www.springframework.org/schema/security"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
       http://www.springframework.org/schema/security
       http://www.springframework.org/schema/security/spring-security-4.2.xsd">

    <!-- security:http ：spring过滤器链配置可以配置如下：
            1）需要拦截什么资源
            2）什么资源什么角色权限
            3）定义认证方式：HttpBasic、Fromlogin(*)
            4)定义登录页面，定义登录请求地址，定义错误处理方式
        -->
    <security:http>

        <!-- 使用htttpBasic的方式进行登录认证 -->
        <security:http-basic/>

    </security:http>

    <!-- security:authentication-manager：认证管理器
            1）认证信息的提供方式（账户名，密码，当前用户权限），可以使用配置写死，也可以连接数据库
            -->
    <security:authentication-manager>

    </security:authentication-manager>

</beans>

**

至此我们SSM+SpringSecurity的环境搭建完毕，接下来可以启动看看是否启动成功

**
