之所以选择加速度计传感器来作为首篇驱动分析，主要是因为官方文档有对它介绍，《SENSOR》，
本文就参考着官方文档，来学习下加速度计传感器的驱动逻辑。

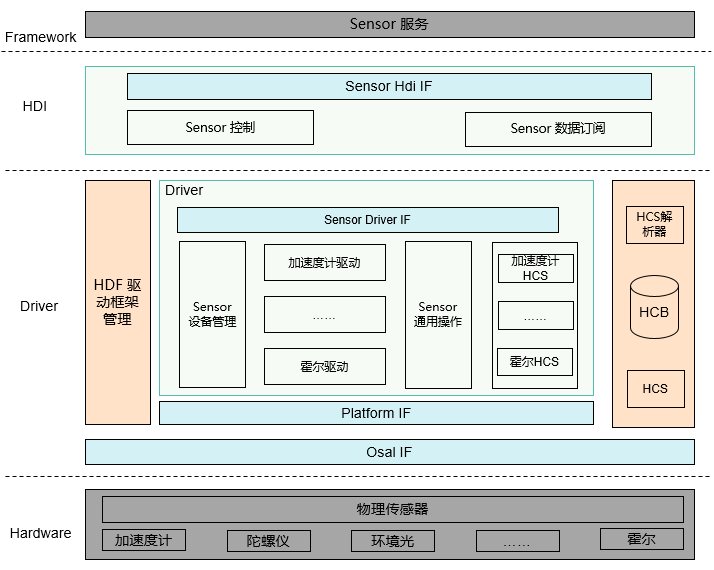

参考官方文档，先来上一张Sensor驱动模型图：

从上面Sensor驱动模型图，从下往上，按我的理解，我们大致可以分为三层：

1. Hardware层： 这一层是实实在在的物理器件，比如加速度计、陀螺仪等。
2. Platform IF层： 这一层主要是提供与物理器件的交互方法，比如I2C、SPI等总线驱动。
3. Driver 层：这一层的核心就是各个驱动的struct HdfDriverEntry结构体，在结构体中封装了相关sensor的具体实现逻辑。
4. HDI 层（Hardware Driver Interface）：这一层，主要是对所有sensor操作方法的封装，给上层app提供操作接口。

本文重点分析的就是加速度计传感器的Driver层代码实现。
好，废话不多说，先来看代码吧。

一、如何添加速度计传感器驱动代码（代码、编译、配置）

1、驱动代码实现

# drivers\framework\model\sensor\driver\chipset\accel\accel_bmi160.c

static int32_t ReadBmi160RawData(struct SensorCfgData *data, struct AccelData *rawData, int64_t *timestamp) {
     }
int32_t ReadBmi160Data(struct SensorCfgData *data){
     }
static int32_t InitBmi160(struct SensorCfgData *data){
     }
static int32_t InitAccelPreConfig(void){
     }
static int32_t DispatchBMI160(struct HdfDeviceIoClient *client, int cmd, struct HdfSBuf *data, struct HdfSBuf *reply){
     }

int32_t Bmi160BindDriver(struct HdfDeviceObject *device){
     }		// 加速度计传感器绑定函数
int32_t Bmi160InitDriver(struct HdfDeviceObject *device){
     }		// 加速度计传感器初始化函数
void Bmi160ReleaseDriver(struct HdfDeviceObject *device){
     }		// 加速度计传感器资源释放函数

// 注册加速度计传感器入口数据结构体对象
struct HdfDriverEntry g_accelBmi160DevEntry = {

    .moduleVersion = 1,							// 加速度计传感器模块版本号
    .moduleName = "HDF_SENSOR_ACCEL_BMI160",	// 加速度计传感器模块名，要与device_info.hcs文件里的加速度计moduleName字段值一样
    .Bind = Bmi160BindDriver,					// 加速度计传感器绑定函数
    .Init = Bmi160InitDriver,					// 加速度计传感器初始化函数
    .Release = Bmi160ReleaseDriver,				// 加速度计传感器资源释放函数
};

// 调用HDF_INIT将驱动入口注册到HDF框架中，
// 在加载驱动时HDF框架会先调用Bind函数, 再调用Init函数加载该驱动，
// 当Init调用异常时，HDF框架会调用Release释放驱动资源并退出
HDF_INIT(g_accelBmi160DevEntry);

2、驱动编译配置

2.1 linux 编译宏控配置

如果内核跑的是linux，那宏控配置主要是在Kconfig中：

# drivers\adapter\khdf\linux\model\sensor\Kconfig

config DRIVERS_HDF_SENSOR_ACCEL
    bool "Enable HDF accel sensor driver"
    default n
    depends on DRIVERS_HDF_SENSOR
    help
      Answer Y to enable HDF accel sensor driver.
config DRIVERS_HDF_SENSOR_ACCEL_BMI160
    bool "Enable HDF accel sensor driver"
    default n
    depends on DRIVERS_HDF_SENSOR_ACCEL
    help
      Answer Y to enable HDF accel bmi160 sensor driver.

Makefile来控制相应的编译规则：

# drivers\adapter\khdf\linux\model\sensor\Makefile

SENSOR_ROOT_DIR = ../../../../../framework/model/sensor/driver

obj-$(CONFIG_DRIVERS_HDF_SENSOR) += \
               $(SENSOR_ROOT_DIR)/common/src/sensor_config_controller.o \
               $(SENSOR_ROOT_DIR)/common/src/sensor_config_parser.o \
               $(SENSOR_ROOT_DIR)/common/src/sensor_device_manager.o \
               $(SENSOR_ROOT_DIR)/common/src/sensor_platform_if.o

obj-$(CONFIG_DRIVERS_HDF_SENSOR_ACCEL) += $(SENSOR_ROOT_DIR)/accel/sensor_accel_driver.o

obj-$(CONFIG_DRIVERS_HDF_SENSOR_ACCEL_BMI160) += $(SENSOR_ROOT_DIR)/chipset/accel/accel_bmi160.o

2.2 liteos 编译宏控配置

如果内核跑的是liteos，则是由BUILD.gn、makefile、Kconfig共同控制：

# drivers\adapter\khdf\liteos\model\sensor\BUILD.gn

import("//drivers/adapter/khdf/liteos/hdf.gni")

module_switch = defined(LOSCFG_DRIVERS_HDF_SENSOR)
module_name = "hdf_sensor_driver"
hdf_driver(module_name) {

  FRAMEWORKS_SENSOR_ROOT = "$HDF_FRAMEWORKS_PATH/model/sensor/driver"
  sources = [
    "$FRAMEWORKS_SENSOR_ROOT/common/src/sensor_config_controller.c",
    "$FRAMEWORKS_SENSOR_ROOT/common/src/sensor_config_parser.c",
    "$FRAMEWORKS_SENSOR_ROOT/common/src/sensor_device_manager.c",
    "$FRAMEWORKS_SENSOR_ROOT/common/src/sensor_platform_if.c",
  ]

  if (defined(LOSCFG_DRIVERS_HDF_SENSOR_ACCEL)) {

    sources += [ "$FRAMEWORKS_SENSOR_ROOT/accel/sensor_accel_driver.c" ]
  }
  if (defined(LOSCFG_DRIVERS_HDF_SENSOR_ACCEL_BMI160)) {

    sources += [ "$FRAMEWORKS_SENSOR_ROOT/chipset/accel/accel_bmi160.c" ]
  }

  include_dirs = [
    "$FRAMEWORKS_SENSOR_ROOT/include",
    "$FRAMEWORKS_SENSOR_ROOT/common/include",
    "$FRAMEWORKS_SENSOR_ROOT/accel",
    "$FRAMEWORKS_SENSOR_ROOT/chipset/accel",
  ]
}

Makefile 内容如下：

# drivers\adapter\khdf\liteos\model\sensor\Makefile

include $(LITEOSTOPDIR)/../../drivers/adapter/khdf/liteos/lite.mk
MODULE_NAME := hdf_sensor_driver

FRAMEWORKS_SENSOR_ROOT = $(LITEOSTOPDIR)/../../drivers/framework/model/sensor/driver

LOCAL_INCLUDE := $(FRAMEWORKS_SENSOR_ROOT)/include \
                 $(FRAMEWORKS_SENSOR_ROOT)/common/include \
                 $(FRAMEWORKS_SENSOR_ROOT)/accel

LOCAL_SRCS += $(FRAMEWORKS_SENSOR_ROOT)/common/src/sensor_config_controller.c \
              $(FRAMEWORKS_SENSOR_ROOT)/common/src/sensor_config_parser.c \
              $(FRAMEWORKS_SENSOR_ROOT)/common/src/sensor_device_manager.c \
              $(FRAMEWORKS_SENSOR_ROOT)/common/src/sensor_platform_if.c

ifeq ($(LOSCFG_DRIVERS_HDF_SENSOR_ACCEL), y)
LOCAL_SRCS += $(FRAMEWORKS_SENSOR_ROOT)/accel/sensor_accel_driver.c \
              $(FRAMEWORKS_SENSOR_ROOT)/chipset/accel/accel_bmi160.c
endif

include $(HDF_DRIVER)

Kconfig内容如下：

# drivers\adapter\khdf\liteos\model\sensor\Kconfig

config DRIVERS_HDF_SENSOR
    bool "Enable HDF sensor driver"
    default n
    depends on DRIVERS_HDF
    help
      Answer Y to enable HDF sensor driver.

config DRIVERS_HDF_SENSOR_ACCEL
    bool "Enable HDF accel sensor driver"
    default n
    depends on DRIVERS_HDF_SENSOR
    help
      Answer Y to enable HDF accel sensor driver.
config DRIVERS_HDF_SENSOR_ACCEL_BMI160
    bool "Enable HDF accel sensor driver"
    default n
    depends on DRIVERS_HDF_SENSOR_ACCEL
    help
      Answer Y to enable HDF accel bmi160 sensor driver.

分析到这，我发现其实Makefile 和BUILD.gn的内容其实差不多，这就很奇怪了，为啥要配两份？

3、设备配置描述

以 Hi3516DV300 为例，这个平台的 device_info.hcs 在vendor/hisilicon/Hi3516DV300/hdf_config/khdf/device_info/目录下：

# vendor/hisilicon/Hi3516DV300/hdf_config/khdf/device_info/device_info.hcs
 root {

    device_info {

        match_attr = "hdf_manager";
        template host {

            hostName = "";
            priority = 100;
            template device {

                template deviceNode {

                    policy = 0;
                    priority = 100;
                    preload = 0;
                    permission = 0664;
                    moduleName = "";
                    serviceName = "";
                    deviceMatchAttr = "";
                }
            }
        }
        platform :: host {

            hostName = "platform_host";
            priority = 50;
            device_gpio :: device {

                device0 :: deviceNode {

                    policy = 0;
                    priority = 10;
                    permission = 0644;
                    moduleName = "linux_gpio_adapter";
                    deviceMatchAttr = "linux_gpio_adapter";
                }
            }
    		device_i2c :: device {

                device0 :: deviceNode {

                    policy = 2;
                    priority = 50;
                    permission = 0644;
                    moduleName = "HDF_PLATFORM_I2C_MANAGER";
                    serviceName = "HDF_PLATFORM_I2C_MANAGER";
                    deviceMatchAttr = "hdf_platform_i2c_manager";
                }
                device1 :: deviceNode {

                    policy = 0;
                    priority = 55;
                    permission = 0644;
                    moduleName = "linux_i2c_adapter";
                    deviceMatchAttr = "linux_i2c_adapter";
                }
            }
  		}
  		display :: host {

            hostName = "display_host";
        }
        input :: host {

            hostName = "input_host";
            priority = 100;
        }
        network :: host {

            hostName = "network_host";
		}
		sensor :: host {

            hostName = "sensor_host";
            device_sensor_manager :: device {

                device0 :: deviceNode {

                    policy = 2;
                    priority = 100;
                    preload = 0;
                    permission = 0664;
                    moduleName = "HDF_SENSOR_MGR_AP";
                    serviceName = "hdf_sensor_manager_ap";
                }
            }
            device_sensor_accel :: device {

                device0 :: deviceNode {

                    policy = 1;
                    priority = 110;
                    preload = 2;
                    permission = 0664;
                    moduleName = "HDF_SENSOR_ACCEL";
                    serviceName = "hdf_sensor_accel";
                    deviceMatchAttr = "hdf_sensor_accel_driver";
                }
            }
            device_sensor_bmi160 :: device {

                device0 :: deviceNode {

                    policy = 1;
                    priority = 120;
                    preload = 2;
                    permission = 0664;
                    moduleName = "HDF_SENSOR_ACCEL_BMI160";
                    serviceName = "hdf_accel_bmi160";
                    deviceMatchAttr = "hdf_sensor_accel_bmi160_driver";
                }
            }
  		}
  		usb_pnp_linux :: host {

            hostName = "usb_pnp_linux_host";
            device_usb_pnp_linux :: device {

            }
        }
		audio :: host {

            hostName = "audio_host";
            priority = 60;
		}
		vibrator :: host {

            hostName = "vibrator_host";
		}
		dsoftbus :: host {

            hostName = "dsoftbus_host";
		}

可以看到，配置方面，相对还是比较简单的。

看到这里，其实您可以返回上一篇文章继续看了： 《【鸿蒙OS开发入门】17 - HDF驱动子系统：hdf_devmgr服务 驱动框架管理模块源码分析》

二、加速度计传感器Driver层代码逻辑分析

在前面《【鸿蒙OS开发入门】17 - HDF驱动子系统：hdf_devmgr服务 驱动框架管理模块源码分析》 中，
我们分析到 DevHostServiceAddDevice()函数，它就是整个驱动的总入口：

主要工作如下：

1. 获取 driverLoader 入口
2. 获取 HdfDevice 结构体，其中定义了hostId/deviceId 和 Attach/Detach方法
3. 调用LoadNode() ，加载设备驱动
4. 调用device->super.Attach() 方法开始探测驱动，实际调用的是.Init方法

# drivers\framework\core\host\src\devhost_service.c
int DevHostServiceAddDevice(struct IDevHostService *inst, const struct HdfDeviceInfo *deviceInfo)
{

    int ret = HDF_FAILURE;
    struct HdfDevice *device = NULL;
    struct HdfDeviceNode *devNode = NULL;
    struct DevHostService *hostService = CONTAINER_OF(inst, struct DevHostService, super);
    // 1. 获取 driverLoader 入口
    struct IDriverLoader *driverLoader = HdfDriverLoaderGetInstance();
    ================>
	    static struct HdfDriverLoader driverLoader;
	    HdfDriverLoaderConstruct(&driverLoader);
	    --------------->
	    +	 struct IDriverLoader *driverLoaderIf = (struct IDriverLoader *)inst;
	    +    driverLoaderIf->LoadNode = HdfDriverLoaderLoadNode;
	    +    driverLoaderIf->UnLoadNode = HdfDriverLoaderUnLoadNode;
	    +    driverLoaderIf->GetDriverEntry = HdfDriverLoaderGetDriverEntry;
	    <---------------
	    return (struct HdfObject *)&driverLoader;
    <================

	// 2. 获取 HdfDevice 结构体，其中定义了hostId/deviceId 和 Attach/Detach方法
    device = DevHostServiceGetDevice(hostService, deviceInfo->deviceId);
    ------------->
    +	device = HdfDeviceNewInstance();
   	+	========>	return (struct HdfDevice *)HdfObjectManagerGetObject(HDF_OBJECT_ID_DEVICE);
    +	+	struct HdfDevice *device = (struct HdfDevice *)OsalMemCalloc(sizeof(struct HdfDevice));
    +	+	HdfDeviceConstruct(device);
    +	+	--------->
    +	+	+	device->super.Attach = HdfDeviceAttach;		// 最终调用驱动的 .Init
    +	+	+	DListHeadInit(&device->devNodes);
    +	+	<---------
    +	<========
    +	device->hostId = inst->hostId;
    +   device->deviceId = deviceId;
    +   DListInsertHead(&device->node, &inst->devices);
    <------------
    if (device == NULL || device->super.Attach == NULL) {

        ret = HDF_DEV_ERR_NO_DEVICE;
        goto error;
    }
	// 3. 调用LoadNode() ，加载设备驱动
    devNode = driverLoader->LoadNode(driverLoader, deviceInfo);

	// 4. 调用device->super.Attach() 方法开始探测驱动，实际调用的是.Init方法
    devNode->hostService = hostService;
    ret = device->super.Attach(&device->super, devNode);

    return HDF_SUCCESS;
}

我们本文就以ACCEL_BMI160 为例来分析下调用流程：

2.1 driverLoader->LoadNode()方法： HdfDriverLoaderLoadNode() 加载驱动 bind() 方法

主要工作如下:

1. 获取驱动函数结构体struct HdfDriverEntry g_accelBmi160DevEntry，其中包含了bmi160的bind和init方法

// 注册加速度计传感器入口数据结构体对象
struct HdfDriverEntry g_accelBmi160DevEntry = {

    .moduleVersion = 1,							// 加速度计传感器模块版本号
    .moduleName = "HDF_SENSOR_ACCEL_BMI160",	// 加速度计传感器模块名，要与device_info.hcs文件里的加速度计moduleName字段值一样
    .Bind = Bmi160BindDriver,					// 加速度计传感器绑定函数
    .Init = Bmi160InitDriver,					// 加速度计传感器初始化函数
    .Release = Bmi160ReleaseDriver,				// 加速度计传感器资源释放函数
};

2. 初始化驱动相关的设备节点，调用HDF_OBJECT_ID_DEVICE_SERVICE所对应的函数DeviceNodeExtCreate()
3. 配置Bmi160的 devNode结构体，绑定driverEntry
4. 调用驱动的 bind 方法开始绑定驱动

# drivers\framework\core\host\src\hdf_driver_loader.c
struct HdfDeviceNode *HdfDriverLoaderLoadNode(struct IDriverLoader *loader, const struct HdfDeviceInfo *deviceInfo)
{

    struct HdfDriverEntry *driverEntry = NULL;
    struct HdfDeviceNode *devNode = NULL;
	// 1. 获取驱动函数结构体struct HdfDriverEntry g_accelBmi160DevEntry
    driverEntry = loader->GetDriverEntry(deviceInfo);

	// 2. 初始化驱动相关的设备节点，调用HDF_OBJECT_ID_DEVICE_SERVICE所对应的函数DeviceNodeExtCreate()
    devNode = HdfDeviceNodeNewInstance();
    ================>	return (struct HdfDeviceNode *)HdfObjectManagerGetObject(HDF_OBJECT_ID_DEVICE_SERVICE);
    +	struct DeviceNodeExt *instance = (struct DeviceNodeExt *)OsalMemCalloc(sizeof(struct DeviceNodeExt));
    +	DeviceNodeExtConstruct(instance);
    +	------------>
    +	-	struct IDeviceNode *nodeIf = &devNode->super;
    +	-	HdfDeviceNodeConstruct(&inst->super);
    +	-	==========>
	+   -   	HdfDeviceObjectConstruct(&devNode->deviceObject);
	+   -   	-------->
	+   -   	+	deviceObject->property = NULL;
	+	-   	+   deviceObject->service = NULL;
	+	-   	+   deviceObject->deviceClass = DEVICE_CLASS_DEFAULT;
	+	-   	<--------
	+   -   	devNode->token = HdfDeviceTokenNewInstance();
	+   -   	nodeIf->LaunchNode = HdfDeviceLaunchNode;			// 调用sensor init方法，初始化sensor
	+   -   	nodeIf->PublishService = HdfDeviceNodePublishPublicService;
	+ 	-	<==========
    +	-	nodeIf->PublishService = DeviceNodeExtPublishService;
    +	<------------
    +   instance->ioService = NULL;
    <================

    // 3. 配置Bmi160的 devNode结构体，绑定driverEntry
    devNode->driverEntry = driverEntry;
    devNode->deviceInfo = deviceInfo;		// device list
    devNode->deviceObject.property = HcsGetNodeByMatchAttr(HdfGetRootNode(), deviceInfo->deviceMatchAttr);
    devNode->deviceObject.priv = (void *)(deviceInfo->private);

	// 4. 调用驱动的 bind 方法开始绑定驱动
    driverEntry->Bind(&devNode->deviceObject);
    return devNode;
}

2.2 driverEntry->Bind()方法： Bmi160BindDriver() 分配并初始化驱动结构体g_bmi160DrvData

1. 分配并初始化struct Bmi160DrvData 内存
2. 将设备节点的HdfDeviceObject结构体与驱动结构体Bmi160DrvData绑定在一起
3. 配置全局驱动结构体指针g_bmi160DrvData

# drivers\framework\model\sensor\driver\chipset\accel\accel_bmi160.c
int32_t Bmi160BindDriver(struct HdfDeviceObject *device)
{

	// 1. 分配并初始经`struct Bmi160DrvData` 内存
    struct Bmi160DrvData *drvData = (struct Bmi160DrvData *)OsalMemCalloc(sizeof(*drvData));

	// 2. 将设备节点的HdfDeviceObject结构体与驱动结构体Bmi160DrvData绑定在一起
    drvData->ioService.Dispatch = DispatchBMI160;
    drvData->device = device;
    device->service = &drvData->ioService;
	// 3. 配置全局驱动结构体指针g_bmi160DrvData
    g_bmi160DrvData = drvData;

    return HDF_SUCCESS;
}

2.3 device->super.Attach()方法： HdfDeviceAttach() 开始加载驱动.Init 方法探测驱动设备

# drivers\framework\core\host\src\hdf_device.c
static int HdfDeviceAttach(struct IHdfDevice *devInst, struct HdfDeviceNode *devNode)
{

    struct HdfDevice *device = (struct HdfDevice *)devInst;
    struct IDeviceNode *nodeIf = (struct IDeviceNode *)devNode;

    DListInsertTail(&devNode->entry, &device->devNodes);
    return nodeIf->LaunchNode(devNode, devInst);
}

在HdfDeviceAttach() 中主要是调用了DeviceNode的LaunchNode()方法，
它是在前面初始化驱动相关的设备节点时配置的，代码为：nodeIf->LaunchNode = HdfDeviceLaunchNode;
我们来看看HdfDeviceLaunchNode() 函数：

1. 调用驱动 .Init() 方法探测并初始化驱动设备
2. 注册device node 对应的service
3. 将驱动添加进device node service中, 对应的函数为 DevmgrServiceAttachDevice()

# drivers\framework\core\host\src\hdf_device_node.c
int HdfDeviceLaunchNode(struct HdfDeviceNode *devNode, struct IHdfDevice *devInst)
{

    struct HdfDevice *device = (struct HdfDevice *)devInst;	   // HdfDevice 结构体，其中定义了hostId/deviceId和Attach/Detach方法
    struct HdfDriverEntry *driverEntry = devNode->driverEntry; // 驱动函数结构体
    const struct HdfDeviceInfo *deviceInfo = devNode->deviceInfo;	// 设备device list结构体
    struct IHdfDeviceToken *deviceToken = NULL;

	// 1. 调用驱动 .Init() 方法探测并初始化驱动设备
    int ret = driverEntry->Init(&devNode->deviceObject);
    // 2. 注册device node 对应的service
    ret = HdfDeviceNodePublishService(devNode, deviceInfo, devInst);
    ------------>
    -	struct IDeviceNode *nodeIf = &devNode->super;
    -	status = nodeIf->PublishService(devNode, deviceInfo->svcName);		// 调用的是 HdfDeviceNodePublishPublicService() 方法
    -	===========>
    -	+	return DevSvcManagerClntAddService(svcName, &devNode->deviceObject);
    -	+	--------->
    -	+		struct DevSvcManagerClnt *devSvcMgrClnt = DevSvcManagerClntGetInstance();
    -	+		struct IDevSvcManager *serviceManager = devSvcMgrClnt->devSvcMgrIf;
    -	+		return serviceManager->AddService(serviceManager, svcName, service);
    -	+	<---------
    -	<===========
    <------------
	// 3. 将驱动添加进device node service中, 对应的函数为 DevmgrServiceAttachDevice()
    deviceToken = devNode->token;
    ret = DevmgrServiceClntAttachDevice(deviceInfo, deviceToken);
    ------------>
    	struct DevmgrServiceClnt *inst = DevmgrServiceClntGetInstance();
    	devMgrSvcIf = inst->devMgrSvcIf;
    	return devMgrSvcIf->AttachDevice(devMgrSvcIf, deviceInfo, deviceToken);
    <------------

    return ret;
}

2.4 driverEntry->Init方法：

此时，终于进入我们驱动的正题了，开始探测并初始化驱动设备。

# drivers\framework\model\sensor\driver\chipset\accel\accel_bmi160.c
int32_t Bmi160InitDriver(struct HdfDeviceObject *device)
{

    int32_t ret;
    struct AccelOpsCall ops;
    struct Bmi160DrvData *drvData = (struct Bmi160DrvData *)device->service;
	// 初始化I2C6的控制寄存器：PIN肢配置为I2C模式和配置I2C时钟
    ret = InitAccelPreConfig();
	//
    drvData->sensorCfg = AccelCreateCfgData(device->property);
    ------------>
    	GetSensorBaseConfigData(node, drvData->accelCfg);
    	DetectSensorDevice(drvData->accelCfg);
    	drvData->detectFlag = true;
    	InitAccelAfterDetected(drvData->accelCfg);
    <------------

    ops.Init = NULL;
    ops.ReadData = ReadBmi160Data;	// 配置 sensor 读取寄存器的方法
    ret = AccelRegisterChipOps(&ops);
    ------------->
    	drvData->ops.Init = ops->Init;
    	drvData->ops.ReadData = ops->ReadData;		// 配置加速度计传感器寄存器读取方法
    <-------------

    ret = InitBmi160(drvData->sensorCfg);
    ------------->
    	ret = SetSensorRegCfgArray(&data->busCfg, data->regCfgGroup[SENSOR_INIT_GROUP]);
	<-------------

    return HDF_SUCCESS;
}

文档参考：
《SENSOR》
《驱动开发》
《配置管理》
